LED Tunnel Light Products

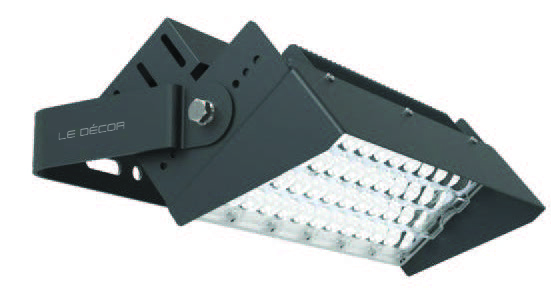

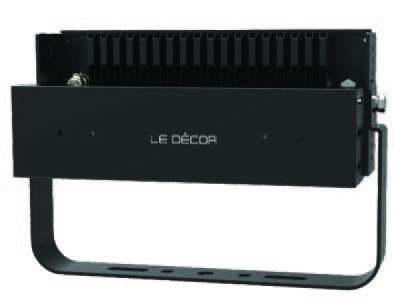

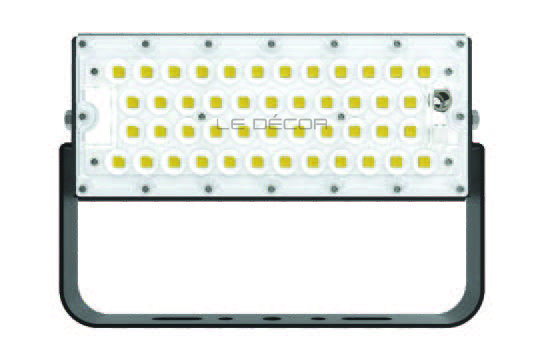

LD-5810-LED Tunnel Light
LD-5810-LED Tunnel Light
- Ultra thin design and light weight gives to beautiful appearance
- High quality marine grade aluminium external housing for durability and excellent heat management
- Adopting high quality LED light sources, SMD 5050 LED chip
- Lumen efficiency upto 160Lm/W
- The optical lens is made of PC, and the transmittance reaches 92%,reducing light loss
- 10° / 15° / 20°/ 40° / 60° / 90° optional beam angles
- Estimated durability 10+ years
| Light Source: | SMD 5050 |
| Power: | 100W/120W |
| Lumen Efficacy: | 150-160lm/W |
| CCT: | 3000K/4000K/5700K/6500K |
| Input Voltage: | AC100-277V |
| Beam Angle: | 10° / 15° / 20°/ 40° / 60° / 90° |
| Material: | Marine grade aluminium |
| Finishing Color: | Black, Grey |
| Driver: | Meanwell / Sosen / Inventronics |
| IP Rating: | IP66 |
| Mounting: | Wall Mounted, Pole Mounted |
| Lifespan: | 50,000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.

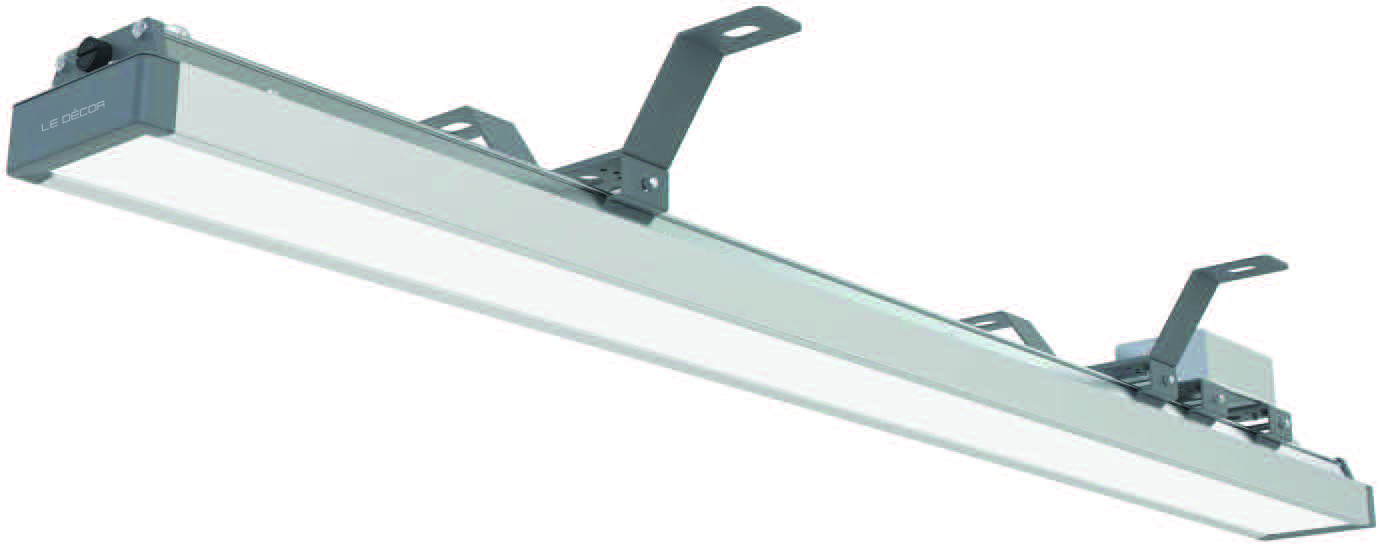

LD-20402-LED Tunnel Light
LD-20402-LED Tunnel Light
- 6063 aluminium heat sink, stable and reliable heat dissipation
- Compatible with various installation methods such as ceiling, hanging installation, and boom installation
- Optical glass design: 70°/100°, to meet the tunnel (strip lighting),warehouse, shelving, industrial lighting and stadium lighting
- 30W/40W/50W/75W/100W/120W optional wattages
- Estimated durability 10+ years
| Light Source: | Philips/Cree |
| Power: | 30W/50W/75W/100W/120W |
| Lumen Efficacy: | 130-140lm/W |
| CCT: | 3000K/4000K/5700K/6500K |
| Input Voltage: | AC85-305V |
| Beam Angle: | 70°/100° |
| Material: | Aluminium |
| Finishing Color: | Grey |
| Driver: | Meanwell |
| IP Rating: | IP65 |
| Mounting: | Wall Mounted,Pole Mounted,Hanging |
| Lifespan: | 50,000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
