LED Wall Pack Light Products

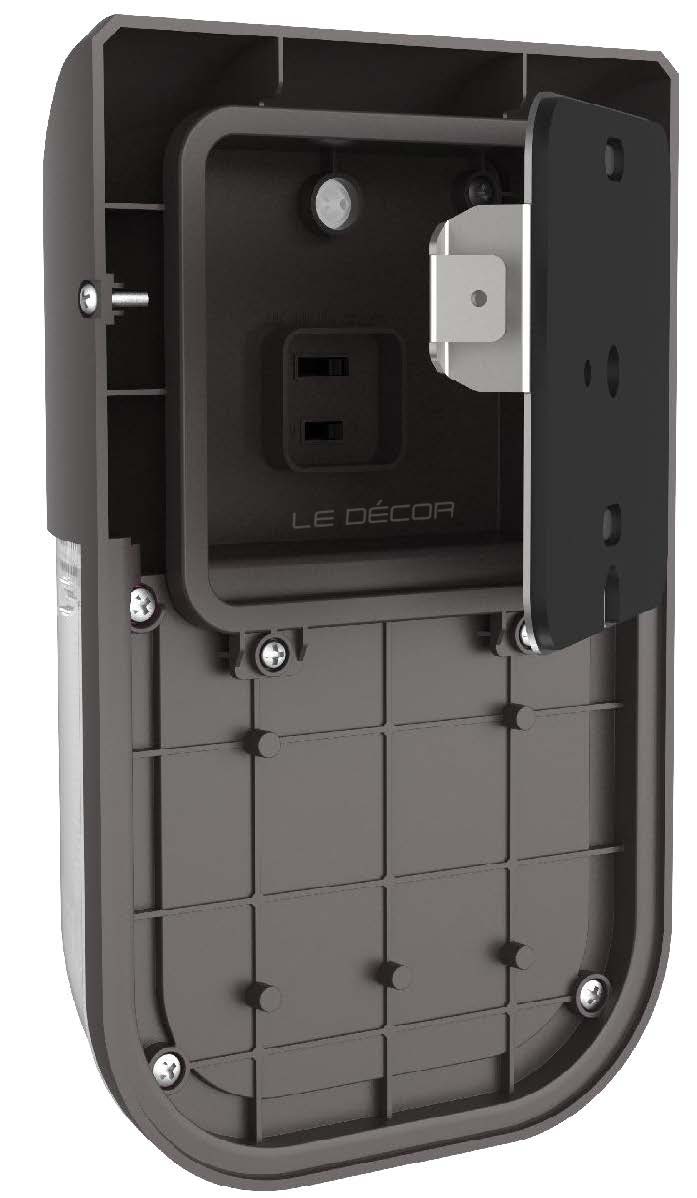

LD-20504-LED Wall Pack Light
LD-20504-LED Wall Pack Light
- Efficiency reaches up to 120 lm/W
- Driver-on-board design offers excellent cost performance
- Modern exterior design with an IP65 water proofing
- Advanced optical structure minimizes glare and reduces light pollution
- Instant start, no noise, no flickering
- Installation easy and safe
| Light Source: | SMD 2835 |
| Power: | 15W/20W |
| Lumen Efficacy: | 120lm/W |
| CCT: | 2700K/3000K/3500K/4000K/5000K |
| Input Voltage: | AC120V |
| Beam Angle: | 100° |
| Material: | Polycarbonate |
| Finishing Color: | Bronze and White, Black |
| Driver: | Standard |
| IP Rating: | IP65 |
| Mounting: | Wall Mounted |
| Lifespan: | 50,000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.

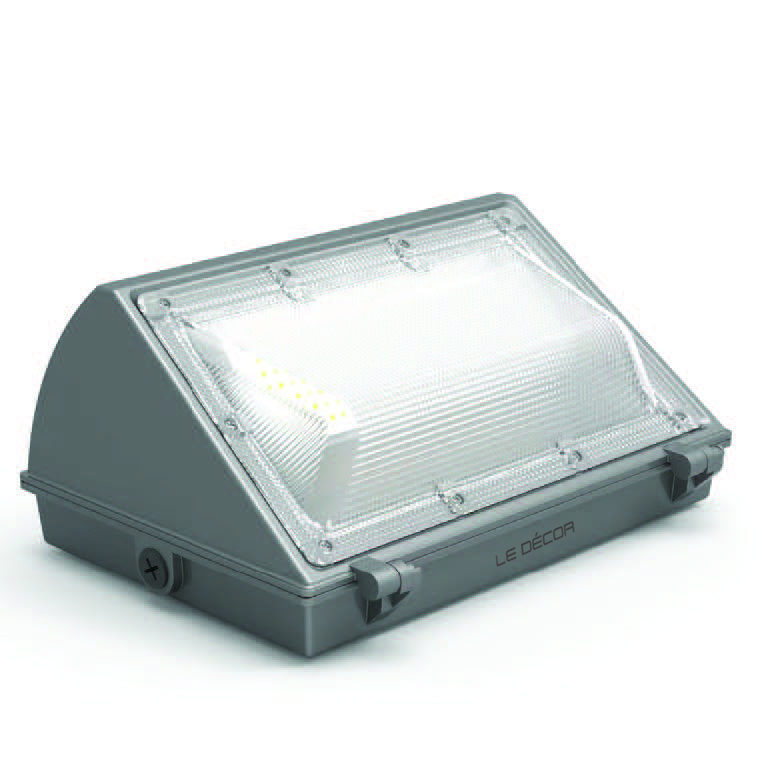

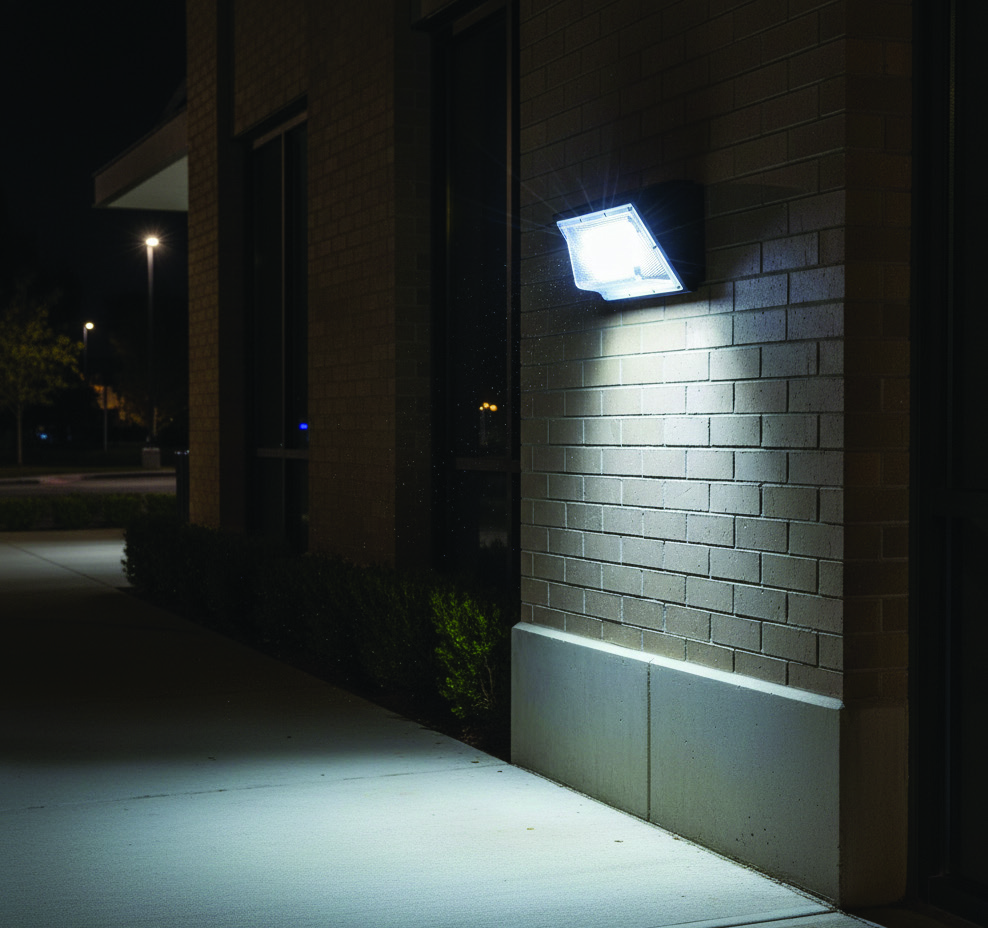

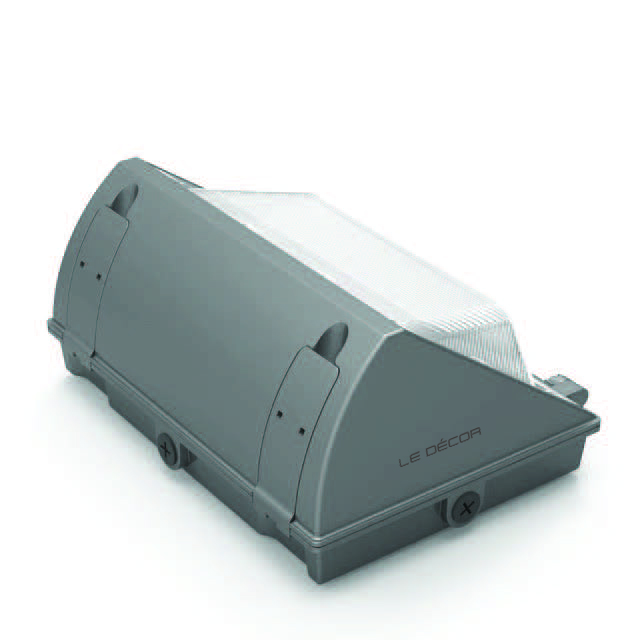

LD-5807-LED Wall Pack
LD-5807-LED Wall Pack
- High pressure die-casting aluminium external housing for durability and excellent heat management
- Adopting high quality LED light sources, Lumileds SMD 3030 LED chip
- Lumen efficiency upto 130Lm/W
- Operating Temperature: -40°C ~+55°C
- Certified by CE, RoHS, ETL, and DLC, ensuring safety, quality, and eligibility for energy rebates
- Estimated durability 10+ years
| Light Source: | Lumileds SMD 3030 |
| Power: | 40W/60W/75W/100W |
| Lumen Efficacy: | 120-130lm/W |
| CCT: | 2700K/3000K/4000K/5700K/6500K |
| Input Voltage: | 120-130lm/W |
| Beam Angle: | 120° |
| Material: | Die-cast aluminium |
| Finishing Color: | Black, Grey |
| Driver: | Standard |
| IP Rating: | IP65 |
| Mounting: | Wall mounted |
| Lifespan: | 50,000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.

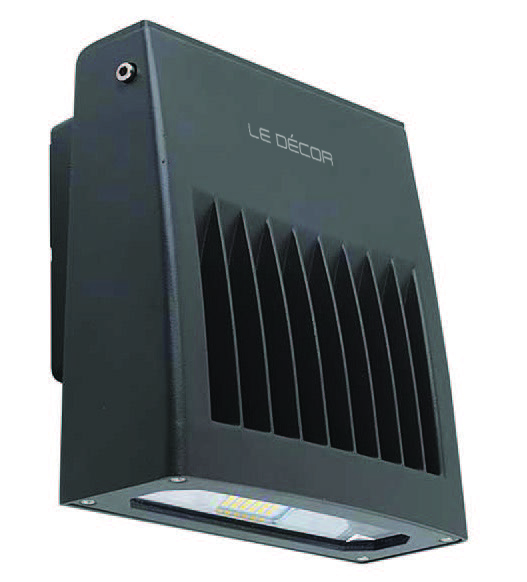

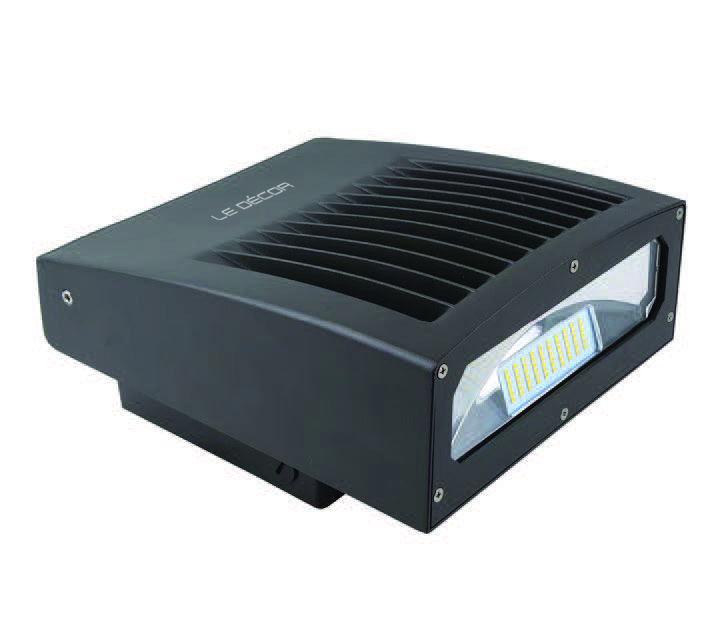

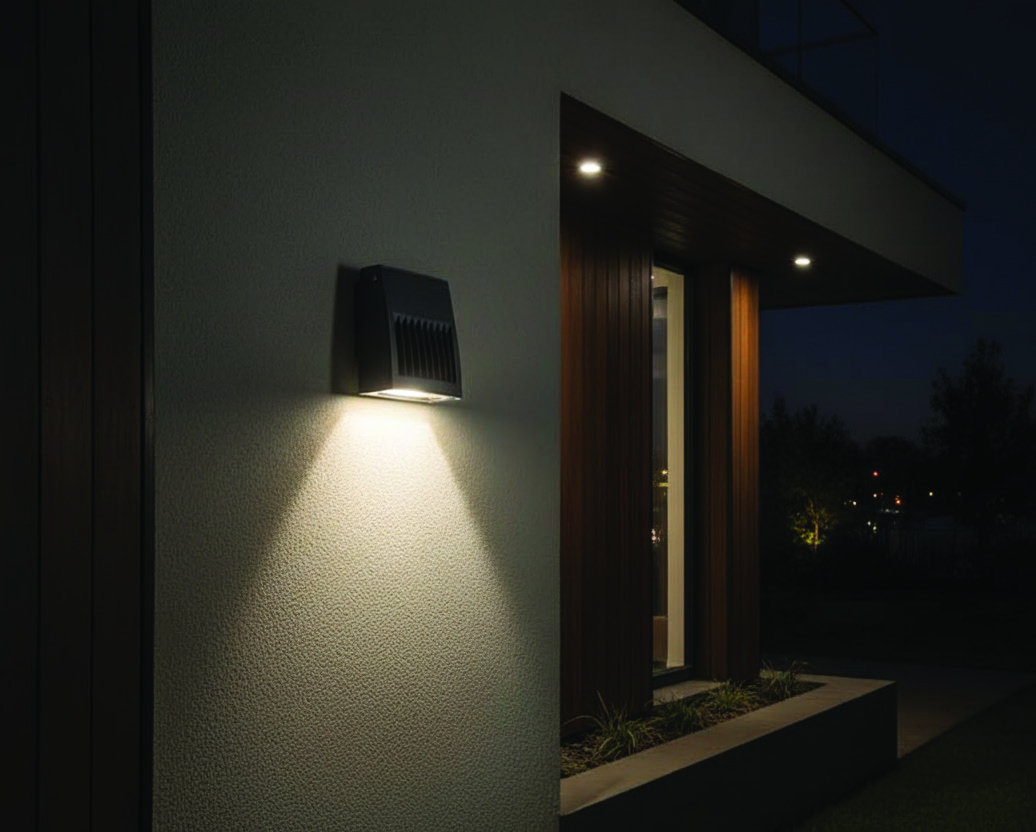

LD-5808-LED Wall Pack
LD-5808-LED Wall Pack
- High pressure die-casting aluminium external housing for durability and excellent heat management
- Adopting high quality LED light sources, Lumileds SMD 3030 LED chip
- Lumen efficiency up to 120Lm/W
- Operating Temperature: -40°C ~+55°C
- Certified by CE, RoHS, ETL, and DLC, ensuring safety, quality, and eligibility for energy rebates
- Estimated durability 10+ years
| Light Source: | Lumileds SMD 3030 |
| Power: | 25W/50W75W |
| Lumen Efficacy: | 110-120lm/W |
| CCT: | 2700K/3000K/4000K/5700K/6500K |
| Input Voltage: | AC100-277V |
| Beam Angle: | 120° |
| Material: | Die-cast aluminium |
| Finishing Color: | Black, Grey |
| Driver: | Standard |
| IP Rating: | IP65 |
| Mounting: | Wall Mounted |
| Lifespan: | 50,000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
