LED Decorative Pole Light Products

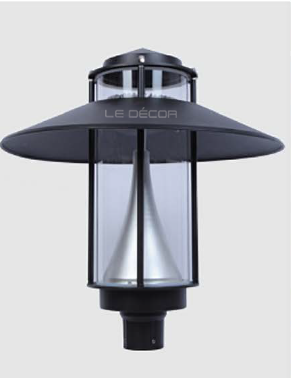

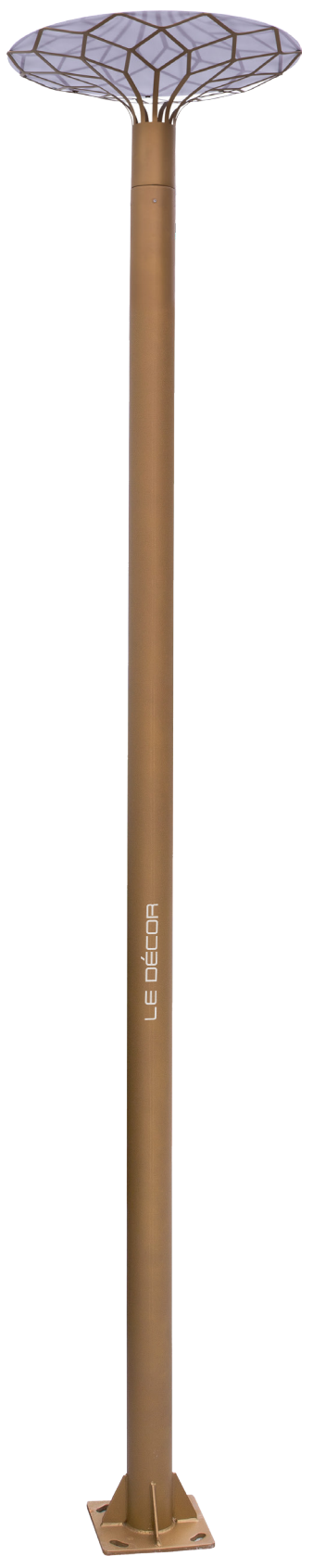

LD-20601-LED Decorative Pole Light
LD-20601-LED Decorative Pole Light
- Die-cast aluminium body with tempered glass and minimum 2mm-thickness based on pole height.
- Equipped with lumileds LEDs and inventronic driver.
- Class 1 electrical protection, operating at 110-240V/50Hz
- Rated IP65 indicating high protection against dust and water jets
- Control System: On/Off / Dali.
- Finish: Electrostatic Powder Coating as per given RAL.
- Customization features available for : RAL/ Flange Cover/ Anchor Set/ Service Door Height/ Mounting Bracket/CCT/CRI/Beam Angle/Diffuser etc.
| Light Source: | Lumileds LED |
| Power: | 30W/50W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 3000K/4000K/5000K/6500K |
| Input Voltage: | AC110-240V |
| Beam Angle: | 90° |
| Material: | Die-cast aluminium |
| Finishing Color: | Grey, Black (Customized RAL Color) |
| Driver: | Inventronic |
| IP Rating: | IP65 |
| Mounting: | Base Mount |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.

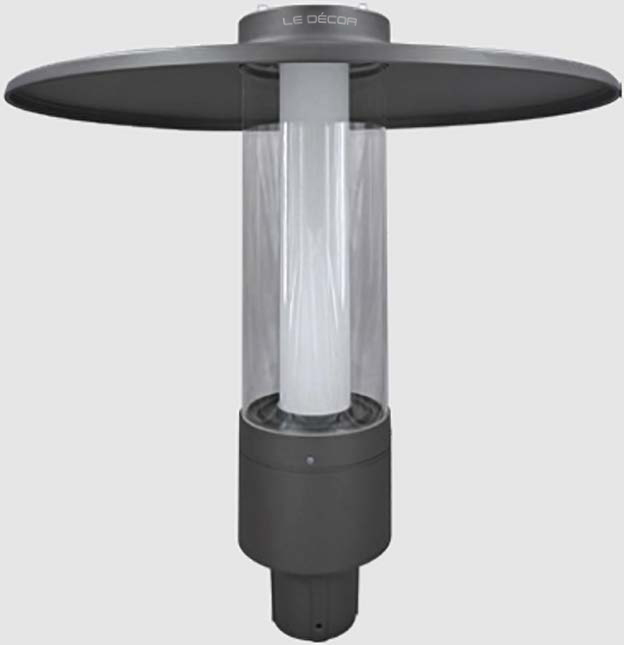

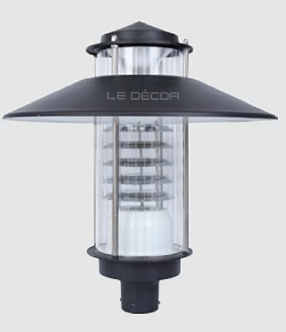

LD-20602-LED Decorative Pole Light
LD-20602-LED Decorative Pole Light
- Die-cast aluminium body with tempered glass and minimum 2mm thickness based on pole height.
- ¾ Equipped with a 25W CREE LED and Inventronic driver.
- Class I, suitable for 110–240V / 50Hz input
- Rated IP65 for dust and water resistance
- Control System: On/Off / Dali.
- Finish: Electrostatic Powder Coating as per given RAL.
- Customization features available for : RAL/ Flange Cover/ Anchor Set/ Service Door Height/ Mounting Bracket/CCT/CRI/Beam Angle/Diffuser etc.
| Light Source: | CREE LED chip |
| Power: | 25W/45W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 3000K/4000K/5000K/6500K |
| Input Voltage: | AC110-240V |
| Beam Angle: | 180° |
| Material: | Die-cast aluminium |
| Finishing Color: | Gray,Black (Customized RAL Color) |
| Driver: | Inventronic |
| IP Rating: | IP65 |
| Mounting: | Base Mount |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.

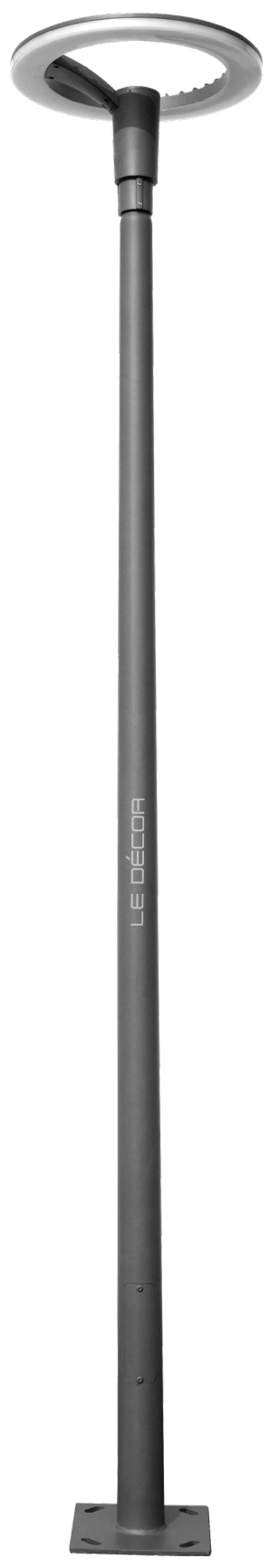

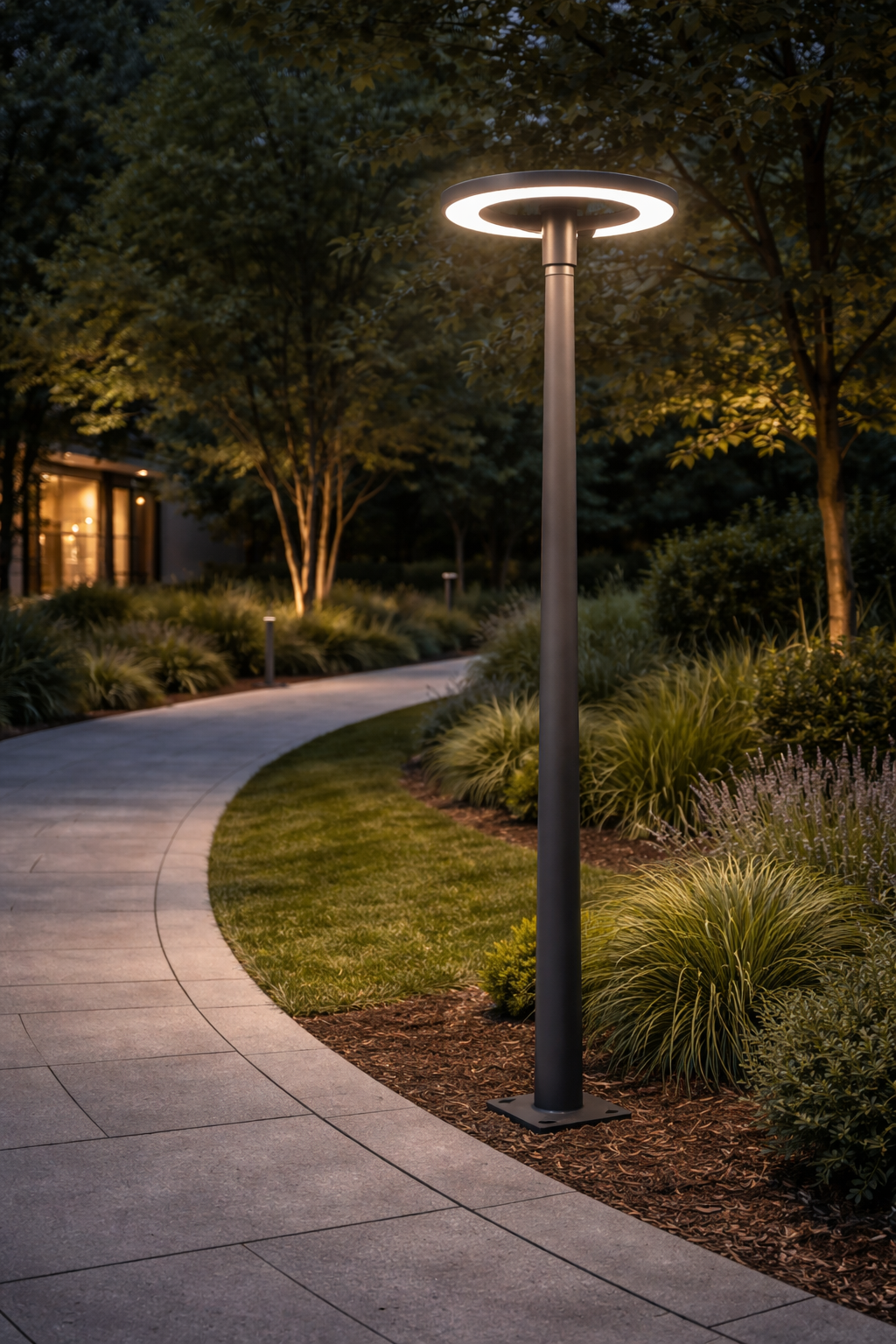

LD-20603-LED Decorative Pole Light
LD-20603-LED Decorative Pole Light
- Constructed with an extruded aluminium body
- Fitted with CREE LED and an Inventronic driver
- Class I, compatible with 110–240V / 50Hz input
- Provides IP65-level protection
- Control System: On/Off / Dali.
- Finish: Electrostatic Powder Coating as per given RAL.
- Customization features available for : RAL/ Flange Cover/ Anchor Set/ Service Door Height/ Mounting Bracket/CCT/ CRI/Beam Angle/Diffuser etc.
| Light Source: | CREE LED chip |
| Power: | 30W/45W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 3000K/4000K/5000K/6500K |
| Input Voltage: | AC110-240V |
| Beam Angle: | N/A |
| Material: | Aluminium |
| Finishing Color: | Gray,Black (Customized RAL Color) |
| Driver: | Inventronic |
| IP Rating: | IP65 |
| Mounting: | Base Mount |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.

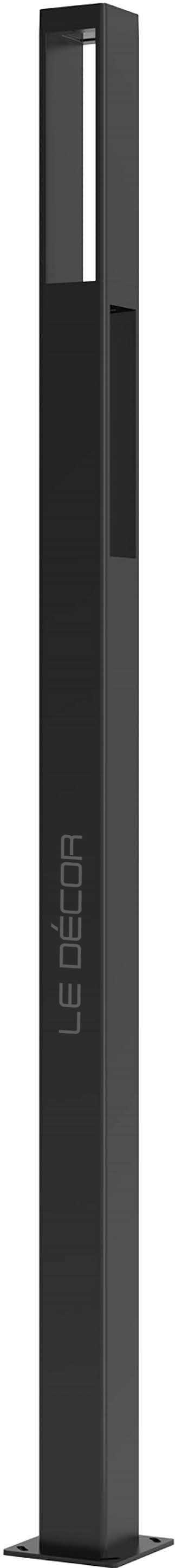

LD-20604-LED Decorative Pole Light
LD-20604-LED Decorative Pole Light
- Die-cast aluminium body with tempered glass and minimum 2mm thickness based on pole height
- The system is Class I rated and operates on an input voltage range of 110- 240V at 50Hz.
- The product is protected against dust and water ingress with an IP65 rating.
- Control System: On/Off / Dali.
- Finish: Electrostatic Powder Coating as per given RAL.
- Customization features available for : RAL/ Flange Cover/ Anchor Set/Service Door Height/ Mounting Bracket/CCT/CRI/Beam Angle/Diffuser etc.
| Light Source: | Lumileds LED |
| Power: | 30W/40W/60W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 3000K/4000K/5000K/6500K |
| Input Voltage: | AC110-240V |
| Beam Angle: | 110° |
| Material: | Aluminium |
| Finishing Color: | Gray,Black (Customized RAL Color) |
| Driver: | Inventronic |
| IP Rating: | IP65 |
| Mounting: | Base Mount |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
LD-20610-LED Decorative Pole Light
LD-20610-LED Decorative Pole Light
- Die-cast aluminium body with tempered glass and minimum 2mm-thickness based on pole height.
- The system is Class I rated and operates on an input voltage range of 110-240V at 50Hz.
- The product is protected against dust and water ingress with an IP65 rating.
- Control System: On/Off / Dali.
- Finish: Electrostatic Powder Coating as per given RAL.
- Customization features available for : RAL/ Flange Cover/ Anchor Set/ Service Door Height/ Mounting Bracket/CCT/CRI/Beam Angle/Diffuser etc.
| Light Source: | Lumileds LED |
| Power: | 30W/45W/60W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 3000K/4000K/5000K/6500K |
| Input Voltage: | AC110-240V |
| Beam Angle: | N/A |
| Material: | Aluminium |
| Finishing Color: | Gray,Black (Customized RAL Color) |
| Driver: | Inventronic |
| IP Rating: | IP65 |
| Mounting: | Base Mount |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
LD-20609-LED Decorative Pole Light
LD-20609-LED Decorative Pole Light
- The fixture is constructed with a die-cast aluminium housing and a spinning aluminium cover
- The product is rated Class I and accepts an input voltage of 110-240V at 50Hz.
- It features an IP65 ingress protection rating, ensuring robust resistance to dust and water.
- Control System: On/Off / Dali.
- Finish: Electrostatic Powder Coating as per given RAL.
- Customization features available for : RAL/ Flange Cover/ Anchor Set/Service Door Height/ Mounting Bracket/CCT/CRI/Beam Angle/Diffuser etc.
| Light Source: | Lumileds LED |
| Power: | 25W/35W/60W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 3000K/4000K/5000K/6500K |
| Input Voltage: | AC110-240V |
| Beam Angle: | N/A |
| Material: | Die-cast aluminium |
| Finishing Color: | Gray,Black (Customized RAL Color) |
| Driver: | Inventronic |
| IP Rating: | IP65 |
| Mounting: | Base Mount |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
LD-20605-LED Decorative Pole Light
LD-20605-LED Decorative Pole Light
- The fixture is built with a die-cast aluminium housing and utilizes a tempered clear glass.
- The internal reflector system is constructed from aluminium sheet, which is powder-coated white to ensure high reflectivity
- It is rated as Class I for electrical safety and operates on an input voltage range of 110-240V at 50Hz
- The product carries an IP65 rating, signifying protection against dust and jets of water.
- Control System: On/Off / Dali.
- Finish: Electrostatic Powder Coating as per given RAL.
- Customization features available for : RAL/ Flange Cover/ Anchor Set/ Service Door Height/ Mounting Bracket/CCT/CRI/Beam Angle/Diffuser etc.
| Light Source: | Lumileds LED |
| Power: | 30W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 3000K/4000K/5000K/6500K |
| Input Voltage: | AC110-240V |
| Beam Angle: | N/A |
| Material: | Die-cast aluminium |
| Finishing Color: | Gray,Black (Customized RAL Color) |
| Driver: | Inventronic |
| IP Rating: | IP65 |
| Mounting: | Base Mount |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
LD-20606-LED Decorative Pole Light
LD-20606-LED Decorative Pole Light
- The fixture is built with a die-cast aluminium housing and utilizes a tempered clear glass lens
- The internal reflector system is constructed from aluminium sheet, which is powder-coated white to ensure high reflectivity
- It is rated as Class I for electrical safety and operates on an input voltage range of 110-240V at 50Hz.
- The product carries an IP65 rating, signifying protection against dust and jets of water.
- Control System: On/Off / Dali.
- Finish: Electrostatic Powder Coating as per given RAL.
- Customization features available for : RAL/ Flange Cover/ Anchor Set/ Service Door Height/ Mounting Bracket/CCT/CRI/Beam Angle/Diffuser etc.
| Light Source: | CREE COB |
| Power: | 30W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 3000K/4000K/5000K/6500K |
| Input Voltage: | AC110-240V |
| Beam Angle: | N/A |
| Material: | Aluminium |
| Finishing Color: | Gray,Black (Customized RAL Color) |
| Driver: | Inventronic |
| IP Rating: | IP65 |
| Mounting: | Base Mount |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
LD-20607-LED Decorative Pole Light
LD-20607-LED Decorative Pole Light
- Equipped with a CREE COB LED
- Constructed from extruded aluminium
- Class I electrical protection; operable with 110-240VAC power at 50Hz
- With an IP65 ingress protection rating, the unit is fully protected against dust and strong water jets.
- Control System: On/Off / Dali.
- Finish: Electrostatic Powder Coating as per given RAL.
- Customization features available for : RAL/ Flange Cover/ Anchor Set/ Service Door Height/ Mounting Bracket/CCT/CRI/Beam Angle/Diffuser etc.
| Light Source: | CREE COB |
| Power: | 20W/40W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 3000K/4000K/5000K/6500K |
| Input Voltage: | AC110-240V |
| Beam Angle: | N/A |
| Material: | Aluminium |
| Finishing Color: | Gray,Black (Customized RAL Color) |
| Driver: | Standard |
| IP Rating: | IP65 |
| Mounting: | Base Mount |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
LD-20608-LED Decorative Pole Light
LD-20608-LED Decorative Pole Light
- An extruded aluminium housing and an opal PC diffuser, providing 360-degree light distribution.
- It is equipped with four T8 FSL LED lamps, each consuming 16 watts of power
- Electrical insulation is Class I, operating on a standard 220V, 50Hz power supply
- An IP65 rating, indicating high resistance to dust and water ingress
- Control System: On/Off / Dali.
- Finish: Electrostatic Powder Coating as per given RAL.
- Customization features available for : RAL/ Flange Cover/ Anchor Set/ Service Door Height/ Mounting Bracket/CCT/CRI/Beam Angle/Diffuser etc.
| Light Source: | Osram LED |
| Power: | 2*16W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 3000K/4000K/5000K/6500K |
| Input Voltage: | AC110-240V |
| Beam Angle: | 90° |
| Material: | Aluminium |
| Finishing Color: | Gray,Black (Customized RAL Color) |
| Driver: | Standard |
| IP Rating: | IP65 |
| Mounting: | Base Mount |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
