LED Surface Wall Light Products

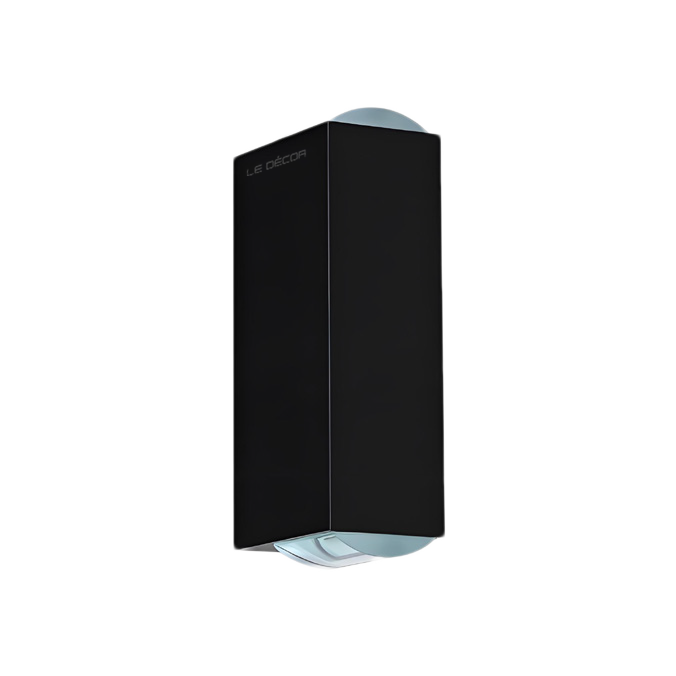

LD-11617-LED Surface Wall Light
LD-11617-LED Surface Wall Light
- High quality die-cast aluminium body provides very good durability and heat dissipation
- Adopting high-power COB LED as light source. Energy-saving, environment protecting and long life
- IP65 waterproof, use in all weather conditions
- No mercury or other hazardous materials
| Light Source: | Bridgelux LED |
| Power: | 2x5W/2x10W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 2700K/3000K/4000K/6000K/RGB |
| Input Voltage: | DC24V/AC85-265V |
| Beam Angle: | 24,36° |
| Material: | Die-cast aluminium |
| Finishing Color: | Grey, Black |
| Driver: | Standard |
| IP Rating: | IP65 |
| Mounting: | Surface Mounted |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
LD-11616-LED Surface Wall Light
LD-11616-LED Surface Wall Light
- High quality Die-cast aluminium body provides very good durability and heat dissipation
- Adopting high-power COB LED as light source. Energy-saving, environment protecting and long life
- IP65 waterproof, use in all weather conditions
- Energy saving up to 80%
- Working environment -20°C-55°C, suitable for unusual climate
| Light Source: | Bridgelux COB LED chip |
| Power: | 2x5W/2x10W/2x15W/2x20W/2x24W/2x30W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 2700K/3000K/4000K/6000K/RGB |
| Input Voltage: | DC24V/AC85-265V |
| Beam Angle: | 15°,24°,36°,60° |
| Material: | Die-cast aluminium |
| Finishing Color: | Black, Grey |
| Driver: | Standard |
| IP Rating: | IP65 |
| Mounting: | Surface Mounted |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
LD-11614-LED Surface Wall Light
LD-11614-LED Surface Wall Light
- High quality Die-cast aluminium body provides very good durability and heat dissipation
- COB LED chips,high efficiency,energy saving and high color rendering
- IP65 waterproof, use in all weather conditions
- Life Span Up to 50,000 Hours
- Working environment -20°C~55°C, suitable for unusual climate
| Light Source: | Bridgelux LED chip |
| Power: | 6W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 2700K/3000K/4000K/6000K/RGB |
| Input Voltage: | DC24V/AC85-265V |
| Beam Angle: | 90° |
| Material: | Die-cast aluminium |
| Finishing Color: | Black, Grey, White |
| Driver: | Standard |
| IP Rating: | IP54/IP65 |
| Mounting: | Surface Mounted |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
LD-11615-LED Surface Wall Light
LD-11615-LED Surface Wall Light
- High quality die-cast aluminium body provides very good durability and heat dissipation
- COB LED chips,high efficiency,energy saving and high color rendering
- IP65 waterproof, use in all weather conditions
- No mercury or other hazardous materials
- Working environment -20°C~55°C, suitable for unusual climate
| Light Source: | Bridgelux COB LED |
| Power: | 5W/7W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 2700K/3000K/4000K/6000K/RGB |
| Input Voltage: | DC24V/AC85-265V |
| Beam Angle: | 90° |
| Material: | Die-cast aluminium |
| Finishing Color: | Grey, Black, white |
| Driver: | Standard |
| IP Rating: | IP54/IP65 |
| Mounting: | Surface Mounted |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
LD-11618-LED Surface Wall Light
LD-11618-LED Surface Wall Light
- Up& down lighting design
- High quality Die-cast aluminium body provides very good durability and heat dissipation
- Tempered glass diffuser
- IP65 waterproof, use in all weather conditions
- Energy saving up to 80%
- Working environment -20°C~55°C, suitable for unusual climate
| Light Source: | Bridgelux LED chip |
| Power: | 2x5W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 2700K/3000K/4000K/6000K/RGB |
| Input Voltage: | DC24V/AC85-265V |
| Beam Angle: | 30° |
| Material: | Die-cast aluminium |
| Finishing Color: | Black, Grey |
| Driver: | Standard |
| IP Rating: | IP65 |
| Mounting: | Surface Mounted |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
LD-11619-LED Surface Wall Light
LD-11619-LED Surface Wall Light
- Simple and Modern Design
- High quality die-cast aluminium body provides very good durability and heat dissipation
- Tempered glass diffuser, anti-aging and good light transmition
- Adopting high-power COB LED as light source. Energy-saving, environment protecting and long life
- IP65 waterproof, use in all weather conditions
| Light Source: | Bridgelux LED |
| Power: | 6W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 2700K/3000K/4000K/6000K/RGB |
| Input Voltage: | DC24V/AC85-265V |
| Beam Angle: | 120° |
| Material: | Aluminium |
| Finishing Color: | Grey, Black |
| Driver: | Standard |
| IP Rating: | IP65 |
| Mounting: | Surface Mounted |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
LD-11620-LED Surface Wall Light
LD-11620-LED Surface Wall Light
- Up& down lighting design
- High quality aluminium body provides very good durability and heat dissipation
- Tempered glass diffuser
- IP65 waterproof, use in all weather conditions
- Energy saving up to 80%
- Working environment -20°C~55°C, suitable for unusual climate
| Light Source: | Bridgelux LED chip |
| Power: | 2x3W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 2700K/3000K/4000K/6000K/RGB |
| Input Voltage: | DC24V/AC85-265V |
| Beam Angle: | 120° |
| Material: | Aluminium |
| Finishing Color: | Black, Grey |
| Driver: | Standard |
| IP Rating: | IP65 |
| Mounting: | Surface Mounted |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
LD-11621-LED Surface Wall Light
LD-11621-LED Surface Wall Light
- High quality aluminium body provides high hardness, protect light head and better heat dissipation
- PC diffuser, good light transmition
- Adopting high-power COB LED as light source. Energy-saving, environment protecting and long life
- IP65 waterproof, use in all weather conditions
- Energy saving up to 80%
| Light Source: | Bridgelux LED |
| Power: | 7W/ 12W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 2700K/3000K/4000K/6000K/RGB |
| Input Voltage: | DC24V/AC85-265V |
| Beam Angle: | 120° |
| Material: | Aluminium |
| Finishing Color: | Grey, Black |
| Driver: | Standard |
| IP Rating: | IP65 |
| Mounting: | Surface Mounted |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
LD-11622-LED Surface Wall Light
LD-11622-LED Surface Wall Light
- High quality aluminium body provides high hardness, protect light head and better heat dissipation
- PC diffuser, good light transmition
- IP65 waterproof, use in all weather conditions
- Energy Savings of as Much as 90% vs. Traditional Lighting
- Instant start, no noise, no flickering
- Installation easy and safe
| Light Source: | Bridgelux LED chip |
| Power: | 10W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 2700K/3000K/4000K/6000K |
| Input Voltage: | AC85-265V |
| Beam Angle: | 30° |
| Material: | Aluminium |
| Finishing Color: | Black, Grey |
| Driver: | Standard |
| IP Rating: | IP65 |
| Mounting: | Surface Mounted |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
LD-5201-E27-LED Wall Light
LD-5201-E27-LED Wall Light
- High quality die-cast aluminium body and tempered glass diffuser
- IP54 housing for protection against water spray and dust ingress
- Working environment -15°C~+50°C, suitable for unusual climate
- Long time working, produce low heat
- Long lifespan
| Light Source: | E27 |
| Power: | 2x60W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 2700K/3000K/6000K |
| Input Voltage: | AC100-240V |
| Beam Angle: | 110° |
| Material: | Die-cast aluminium |
| Finishing Color: | Black, White and Grey |
| Driver: | Standard |
| IP Rating: | IP54 |
| Mounting: | Wall mounting |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
LD-5205-E27-LED Wall Light
LD-5205-E27-LED Wall Light
- High quality aluminium body and tempered glass diffuser
- IP54 housing for protection against water spray and dust ingress
- Working environment -15°C~+50°C, suitable for unusual climate
- Long time working, produce low heat
- Long lifespan
| Light Source: | E27 |
| Power: | 2x60W E27 |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 2700K/3000K/4000K/6000K |
| Input Voltage: | AC100-240V |
| Beam Angle: | 120° |
| Material: | Aluminium |
| Finishing Color: | Black, White and Grey |
| Driver: | Standard |
| IP Rating: | IP54 |
| Mounting: | Wall mounting |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
LD-5221-LED Wall Light
LD-5221-LED Wall Light
- Die-casting aluminium light body, excellent heat dissipation
- E27 light source max.2x60W
- IP54 waterproof
- Working environment -15°C~+50°C, suitable for unusual climate
| Light Source: | E27 |
| Power: | 2x60W E27 |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 2700K/3000K/4000K/6000K |
| Input Voltage: | AC100-240V |
| Beam Angle: | 120° |
| Material: | Die-cast aluminium |
| Finishing Color: | Black, White and Grey |
| Driver: | Standard |
| IP Rating: | IP54 |
| Mounting: | Wall mounting |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
LD-5271-LED Wall Light
LD-5271-LED Wall Light
- Die-casting aluminium light body, excellent heat dissipation
- Energy saving, not emitting UV and IR, no RF interference
- IP54 waterproof
- Working environment -15°C~+50°C, suitable for unusual climate
| Light Source: | Epistar LED |
| Power: | 12W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 2700K/3000K/4000K/6000K |
| Input Voltage: | AC100-240V |
| Beam Angle: | 120° |
| Material: | Die-cast aluminium |
| Finishing Color: | Black, White and Grey |
| Driver: | Eaglerise |
| IP Rating: | IP54 |
| Mounting: | Wall mounting |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
LD-5282-LED Wall Light
LD-5282-LED Wall Light
- Die-casting aluminium light body, excellent heat dissipation
- Energy saving, not emitting UV and IR, no RF interference
- Moisture-proof lights
- IP54 waterproof
| Light Source: | E27 LED Bulb |
| Power: | 2700K/3000K/4000K/6000K |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 2700K/3000K/4000K/6000K |
| Input Voltage: | 240VAC |
| Beam Angle: | 120° |
| Material: | Die-cast aluminium |
| Finishing Color: | Black and Dark grey |
| Driver: | Standard |
| IP Rating: | IP54 |
| Mounting: | Wall Surface mounted |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
LD-52104-LED Wall Light
LD-52104-LED Wall Light
- Designed for both wall and ceiling mount
- Minimal design, contemporary look
- High quality die-cast aluminium body
- High quality LED chip
- High performance LED driver with exceptional operating efficiency
- IP54 housing for protection against water spray and dust ingress
| Light Source: | Epistar LED |
| Power: | 12W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 2700K/3000K/6000K |
| Input Voltage: | AC100-240V |
| Beam Angle: | 120° |
| Material: | Die-cast aluminium |
| Finishing Color: | Black, White and Grey |
| Driver: | Standard |
| IP Rating: | IP54 |
| Mounting: | Wall mounting |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
LD-52231-LED Wall Light
LD-52231-LED Wall Light
- High quality die-cast aluminium body provides a great thermal management
- IP54 waterproof
- Environment friendly
- Finished color: Black, white, grey
| Light Source: | Epistar LED chip |
| Power: | 3*1W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 2700K/3000K/6000K |
| Input Voltage: | AC100-240V |
| Beam Angle: | 90° |
| Material: | Die-cast aluminium |
| Finishing Color: | Black, White and Grey |
| Driver: | Standard |
| IP Rating: | IP54 |
| Mounting: | Surface mounting |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
LD-52232-LED Wall Light
LD-52232-LED Wall Light
- High quality die-cast aluminium body provides a great thermal management
- IP54 waterproof
- Environment friendly
- Finished color: Black, white, grey
| Light Source: | Epistar LED chip |
| Power: | 3*1W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 2700K/3000K/6000K |
| Input Voltage: | AC100-240V |
| Beam Angle: | 90° |
| Material: | Die-cast aluminium |
| Finishing Color: | Black, White and Grey |
| Driver: | Standard |
| IP Rating: | IP54 |
| Mounting: | Surface Mounting |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
LD-52233-LED Wall Light
LD-52233-LED Wall Light
- High quality die-cast aluminium body and PC diffuser
- IP54 housing for protection against water spray and dust ingress
- Working environment -15°C~+50°C, suitable for unusual climate
- Long time working, produce low heat
| Light Source: | Epistar LED |
| Power: | 3W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 2700K/3000K/6000K |
| Input Voltage: | AC100-240V |
| Beam Angle: | 90° |
| Material: | Die-cast aluminium |
| Finishing Color: | Black, White and Grey |
| Driver: | Standard |
| IP Rating: | IP54 |
| Mounting: | Wall mounting |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
LD-52234-LED Wall Light
LD-52234-LED Wall Light
- Die-casting aluminium light body, excellent heat dissipation
- IP54 housing for protection against water spray and dust ingress
- Working environment -15°C~+50°C, suitable for unusual climate
| Light Source: | Epistar LED |
| Power: | 4W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 2700K/3000K/4000K/6000K |
| Input Voltage: | AC100-240V |
| Beam Angle: | 90° |
| Material: | Die-cast aluminium |
| Finishing Color: | Black, White and Grey |
| Driver: | Eaglerise |
| IP Rating: | IP54 |
| Mounting: | Wall mounting |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
LD-52235-LED Wall Light
LD-52235-LED Wall Light
- High quality die-cast aluminium body
- IP54 waterproof
- Optional color Black, white, and grey
- High quality pc diffuser, reduce the effect of rapid temperature changes
| Light Source: | Epistar LED chip |
| Power: | 6W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 2700K/3000K/6000K |
| Input Voltage: | AC100-240V |
| Beam Angle: | 90° |
| Material: | Die-cast aluminium |
| Finishing Color: | Black, White and Grey |
| Driver: | Standard |
| IP Rating: | IP54 |
| Mounting: | Surface mounting |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
LD-52236-LED Wall Light
LD-52236-LED Wall Light
- Die-casting aluminium light body, excellent heat dissipation
- E27 light source max.60W
- IP54 waterproof
- Working environment -15°C~+50°C, suitable for unusual climate
| Light Source: | E27 |
| Power: | Max.60W E27 |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 2700K/3000K/4000K/6000K |
| Input Voltage: | AC100-240V |
| Beam Angle: | 120° |
| Material: | Die-cast aluminium |
| Finishing Color: | Black, White and Grey |
| Driver: | Standard |
| IP Rating: | IP54 |
| Mounting: | Wall mounting |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
LD-52237-LED Wall Light
LD-52237-LED Wall Light
- High quality die-cast aluminium body and tempered glass diffuser.
- IP54 housing for protection against water spray and dust ingress
- Working environment -15°C~+50°C, suitable for unusual climate
- Long time working, produce low heat
- Long lifespan
| Light Source: | Epistar LED |
| Power: | 9W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 2700K/3000K/4000K/6000K |
| Input Voltage: | AC100-240V |
| Beam Angle: | 110° |
| Material: | Die-cast aluminium |
| Finishing Color: | Black, White and Grey |
| Driver: | Eaglerise |
| IP Rating: | IP54 |
| Mounting: | Wall mounting |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
LD-52238-LED Wall Light
LD-52238-LED Wall Light
- High quality die-cast aluminium body and tempered glass diffuser
- IP54 housing for protection against water spray and dust ingress
- Working environment -15°C~+50°C, suitable for unusual climate
- Long time working, produce low heat
- Energy saving and high efficiency
| Light Source: | Epistar LED |
| Power: | 5W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 2700K/3000K/4000K/6000K |
| Input Voltage: | AC100-240V |
| Beam Angle: | 120° |
| Material: | Die-cast aluminium |
| Finishing Color: | Black, White and Grey |
| Driver: | Eaglerise |
| IP Rating: | IP54 |
| Mounting: | Wall mounting |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
LD-52239-LED Wall Light
LD-52239-LED Wall Light
- High quality die-cast aluminium body and tempered glass diffuser
- IP54 housing for protection against water spray and dust ingress
- Working environment -15°C~+50°C, suitable for unusual climate
- Long time working, produce low heat.
- Energy saving and high efficiency
| Light Source: | Epistar LED |
| Power: | 12W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 2700K/3000K/4000K/6000K |
| Input Voltage: | AC100-240V |
| Beam Angle: | 120° |
| Material: | Die-cast aluminium |
| Finishing Color: | Black, White and Grey |
| Driver: | Eaglerise |
| IP Rating: | IP54 |
| Mounting: | Wall mounting |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
LD-52240-LED Wall Light
LD-52240-LED Wall Light
- High quality die-cast aluminium body and tempered glass diffuser
- IP54 housing for protection against water spray and dust ingress
- Working environment -15°C~+50°C, suitable for unusual climate
- Long time working, produce low heat
- Energy saving and high efficiency
| Light Source: | E27 |
| Power: | Max.60W E27 |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 2700K/3000K/4000K/6000K |
| Input Voltage: | AC100-240V |
| Beam Angle: | 120° |
| Material: | Die-cast aluminium |
| Finishing Color: | Black, White and Grey |
| Driver: | Standard |
| IP Rating: | IP54 |
| Mounting: | Wall mounting |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
LD-52241-LED Wall Light
LD-52241-LED Wall Light
- High quality die-cast aluminium body and PC diffuser.
- IP54 housing for protection against water spray and dust ingress
- Working environment -15°C~+50°C, suitable for unusual climate
- Long time working, produce low heat
- Energy saving and high efficiency
| Light Source: | E27 |
| Power: | AC100-240V |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 2700K/3000K/4000K/6000K |
| Input Voltage: | AC100-240V |
| Beam Angle: | 120° |
| Material: | Die-cast aluminium |
| Finishing Color: | Black, White and Grey |
| Driver: | Standard |
| IP Rating: | IP54 |
| Mounting: | Wall mounting |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
LD-52242-LED Wall Light
LD-52242-LED Wall Light
- High quality die-cast aluminium body provides a great thermal management
- IP54 waterproof
- Environment friendly
- Finished color: Black, white, gray
| Light Source: | E27 |
| Power: | Max.60W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 2700K/3000K/6000K |
| Input Voltage: | AC100-240V |
| Beam Angle: | 110° |
| Material: | Die-cast aluminium |
| Finishing Color: | Black, White and Grey |
| Driver: | Standard |
| IP Rating: | IP54 |
| Mounting: | Wall mounting |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
LD-52243-LED Wall Light
LD-52243-LED Wall Light
- To achieve the purpose of embellishing the building, but also to provide the necessary lighting
- High quality die-cast aluminium body
- IP54 waterproof
| Light Source: | E27 |
| Power: | Max.60W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 2700K/3000K/6000K |
| Input Voltage: | AC100-240V |
| Beam Angle: | 110° |
| Material: | Die-cast aluminium |
| Finishing Color: | Black, White and Grey |
| Driver: | Standard |
| IP Rating: | IP54 |
| Mounting: | Wall mounting |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
LD-52244-LED Wall Light
LD-52244-LED Wall Light
- High quality die-cast aluminium body
- IP54 waterproof
- Optional color Black, white and grey
- High quality pc diffuser, reduce the effect of rapid temperature changes
| Light Source: | E27 |
| Power: | Max.15W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 2700K/3000K/6000K |
| Input Voltage: | AC100-240V |
| Beam Angle: | 110° |
| Material: | Die-cast aluminium |
| Finishing Color: | Black, White and Grey |
| Driver: | Standard |
| IP Rating: | IP54 |
| Mounting: | Wall mounting |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
LD-8502-LED Wall Light
LD-8502-LED Wall Light
- The outdoor wall light is made of high-quality aluminium
- Unique light design, soft light, glare-free, wider and more uniform lighting spot
- IP65 weatherproof
- Super bright energy saving chip
- Easy installation
| Light Source: | EPISTAR LED chip |
| Power: | 12W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 3000K/4000K/5000K/6000K |
| Input Voltage: | AC85-265V |
| Beam Angle: | 120° |
| Material: | Aluminium Alloy |
| Finishing Color: | Black and Grey |
| Driver: | Isolated LED Driver |
| IP Rating: | IP65 |
| Mounting: | Surface Mounted |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.

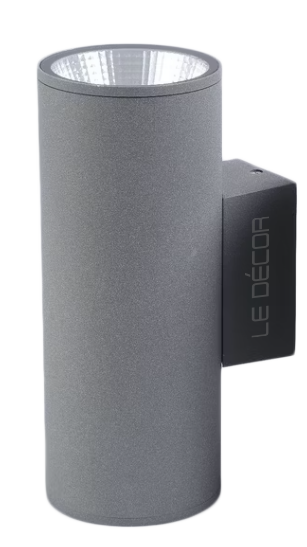

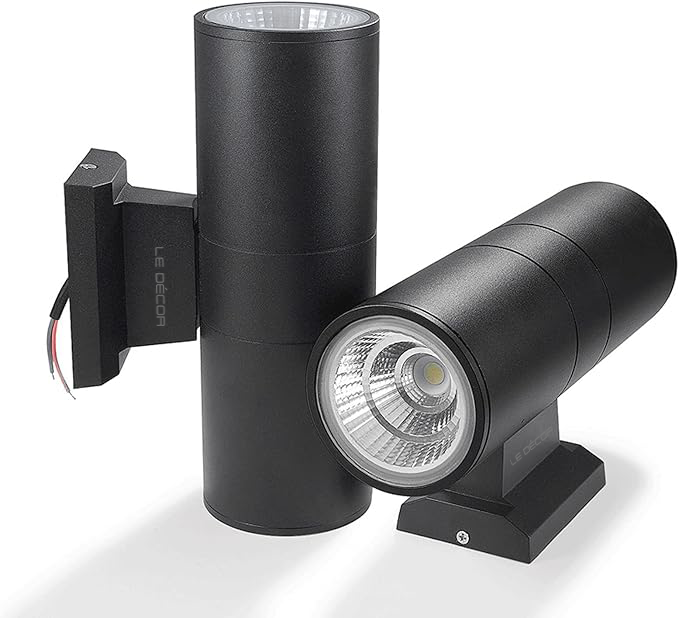

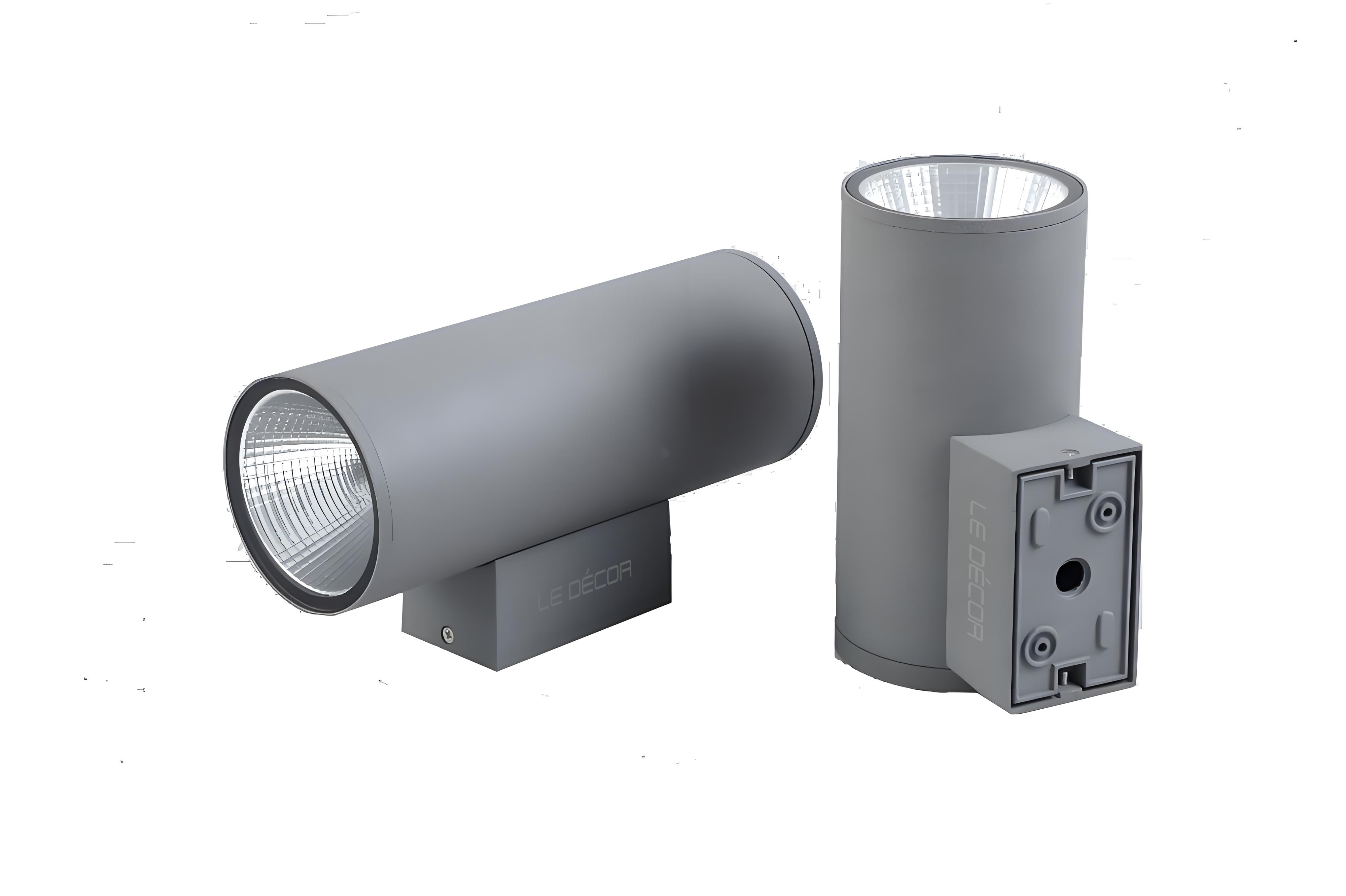

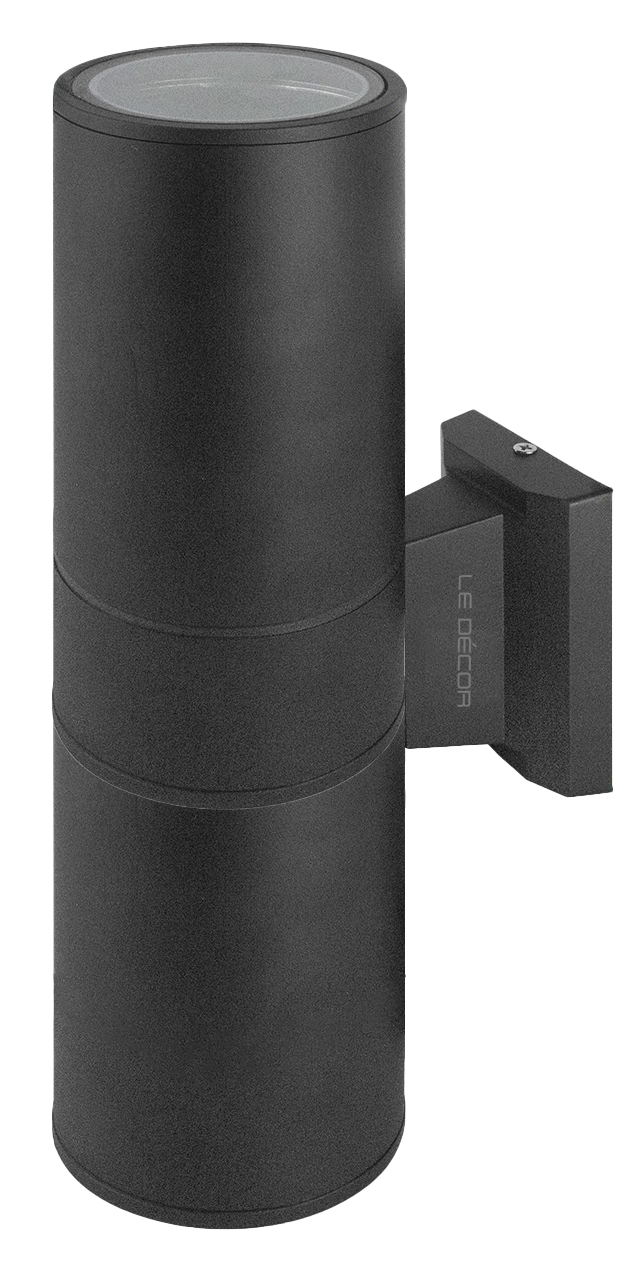

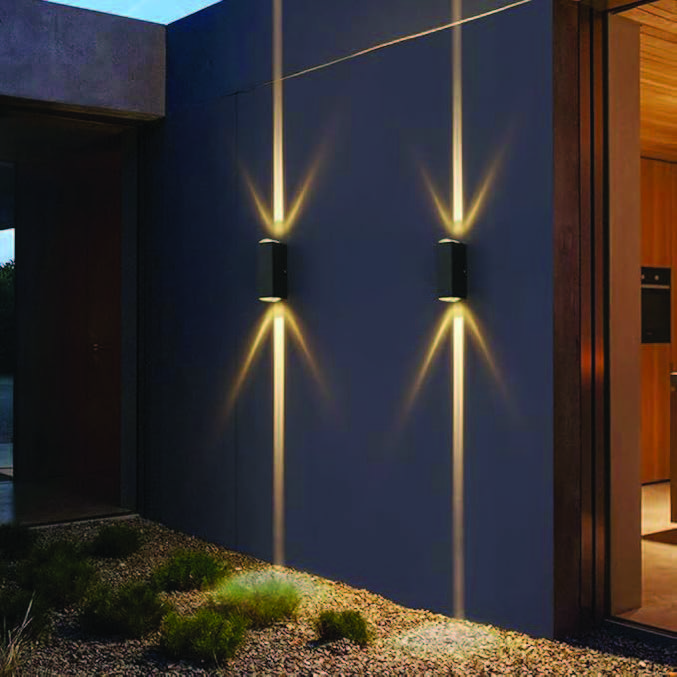

LD-8509-LED Wall Light
LD-8509-LED Wall Light
- Elegant Design, up-down wall light
- Adjustable beam angle
- More stable quality
- IP65 weatherproof
- Super bright energy saving chip
- Low power consumption and Low heat dissipation
- Easy installation
| Light Source: | EPISTAR LED chip |
| Power: | 2x3W/2x6W/2x10W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 2700K/3000K/4000K/5000K/6000K |
| Input Voltage: | AC85-265V |
| Beam Angle: | 15°,30°,60° |
| Material: | Aluminium Alloy |
| Finishing Color: | Black, White and Grey |
| Driver: | In-built |
| IP Rating: | IP65 |
| Mounting: | Surface Mounted |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
LD-8510-LED Wall Light

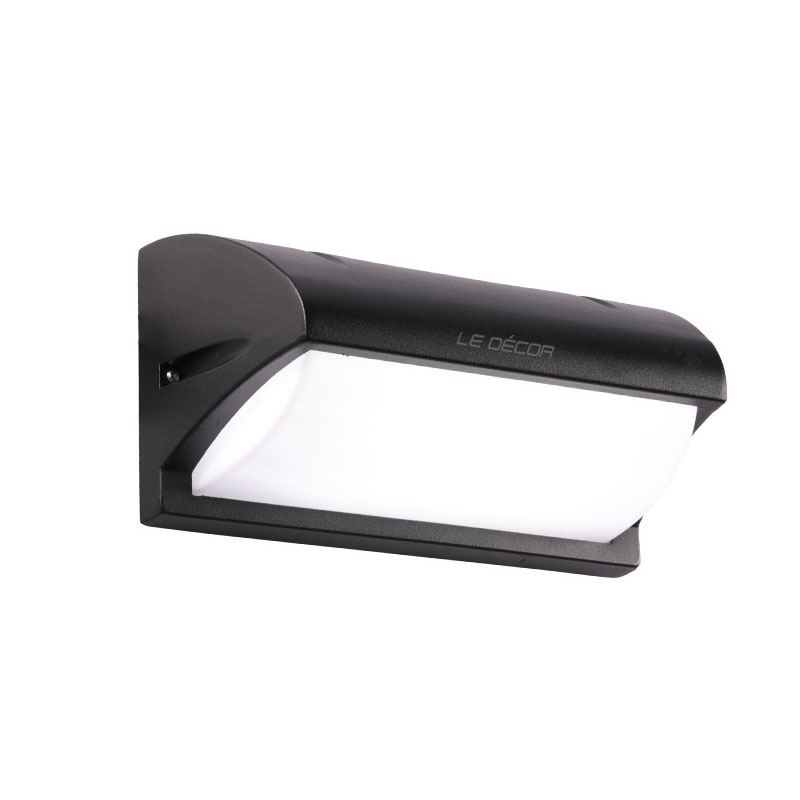

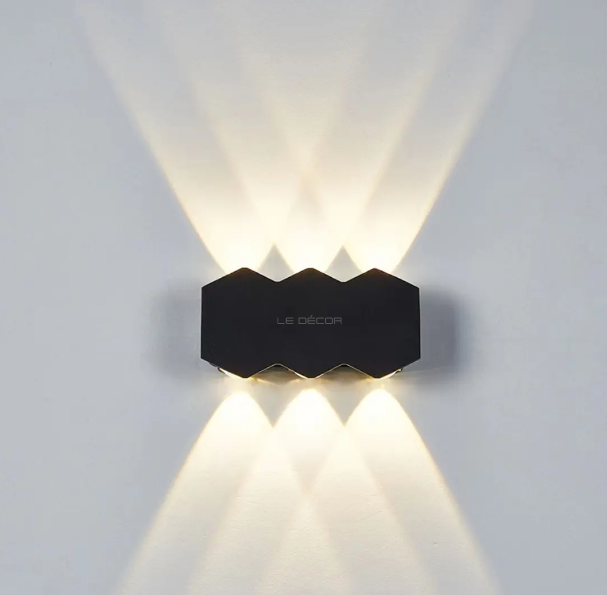

LD-8510-LED Wall Light
- The wall light is made of high-quality aluminium
- IP65 weatherproof
- The high CRI color rendering index reaches a value of ≥ 80
- Super bright energy saving chip
- Easy installation and long service life
| Light Source: | EPISTAR LED chip |
| Power: | 3x2W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 3000K/4000K/5000K/6000K |
| Input Voltage: | AC85-265V |
| Beam Angle: | 60° |
| Material: | Aluminium |
| Finishing Color: | Black and White |
| Driver: | In-built LED Driver |
| IP Rating: | IP65 |
| Mounting: | Surface Mounted |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.

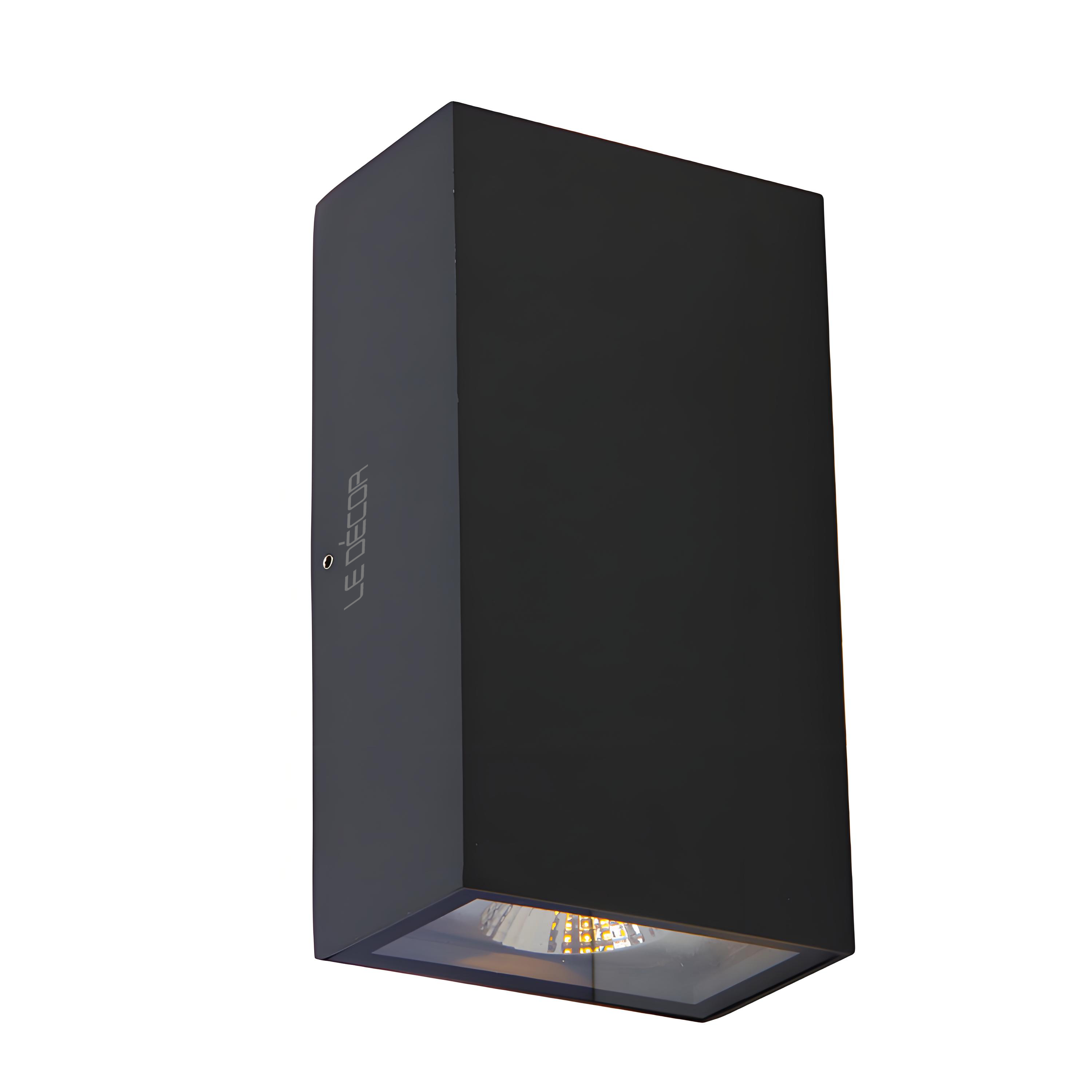

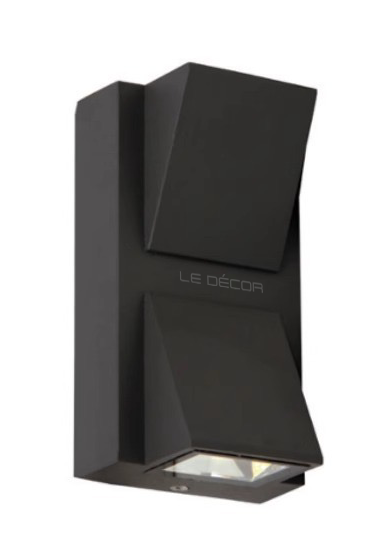

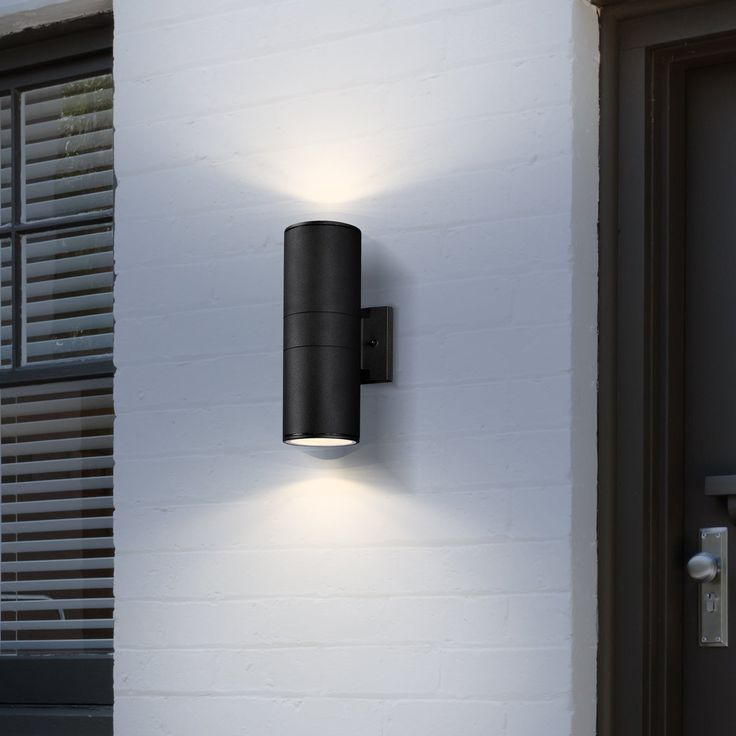

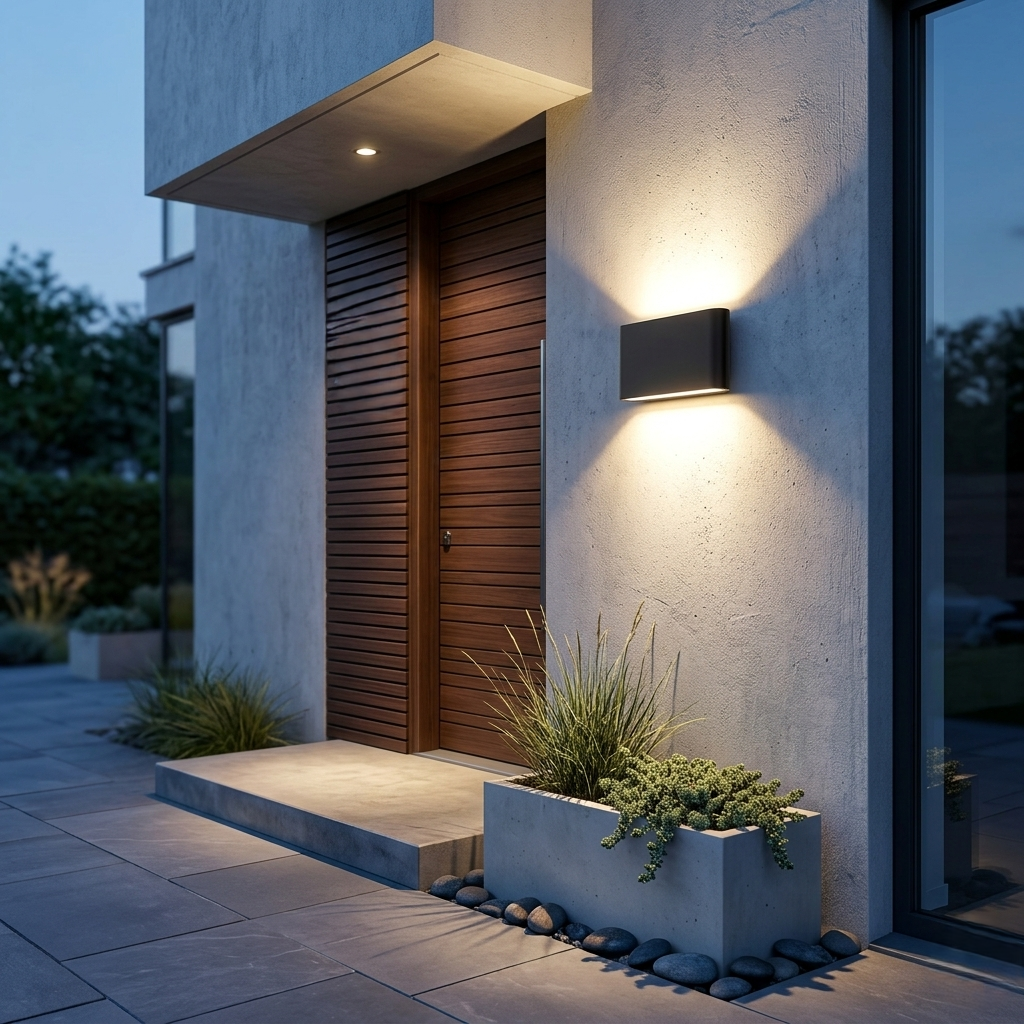

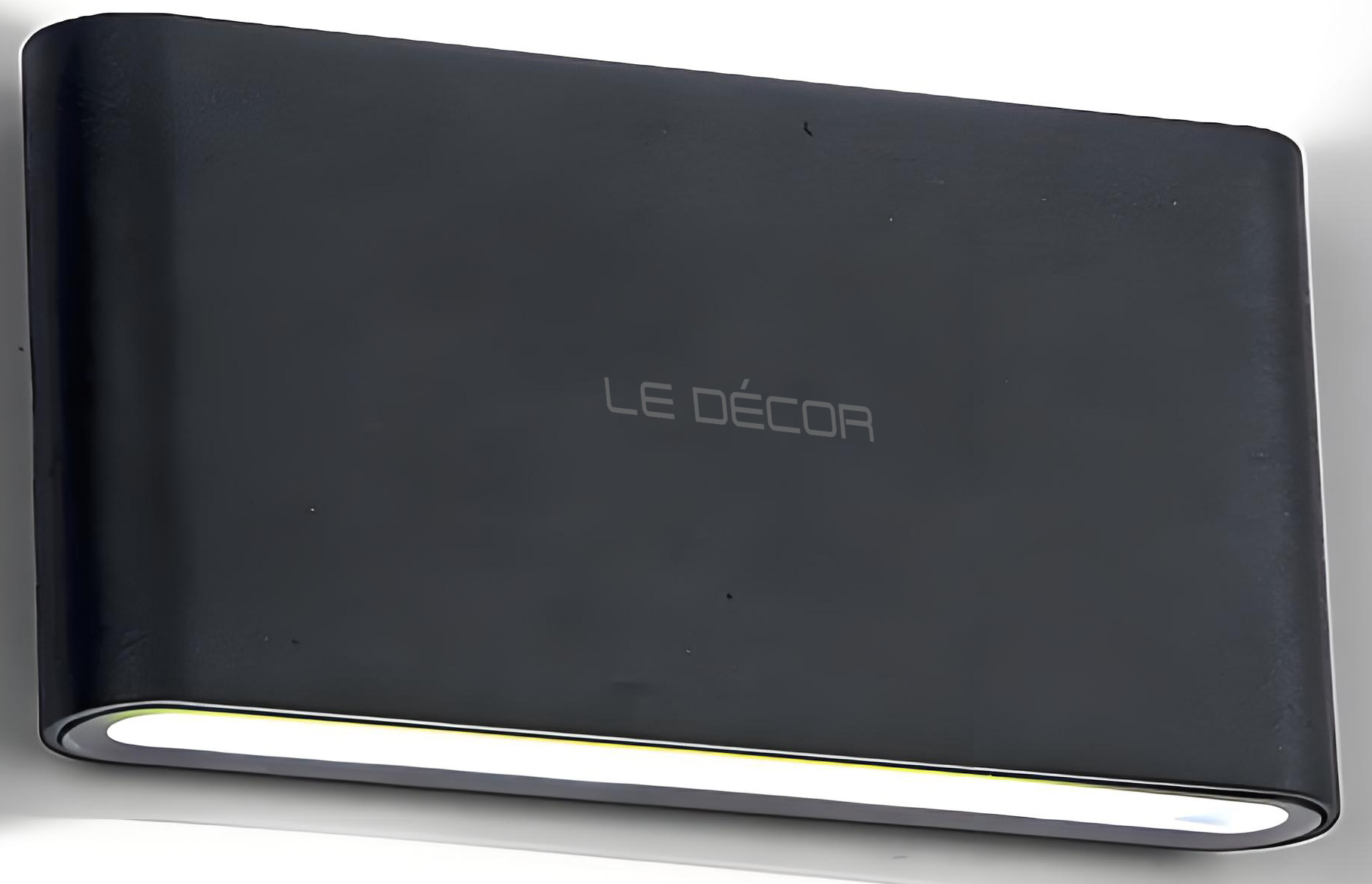

LD-8513-LED Wall Light
LD-8513-LED Wall Light

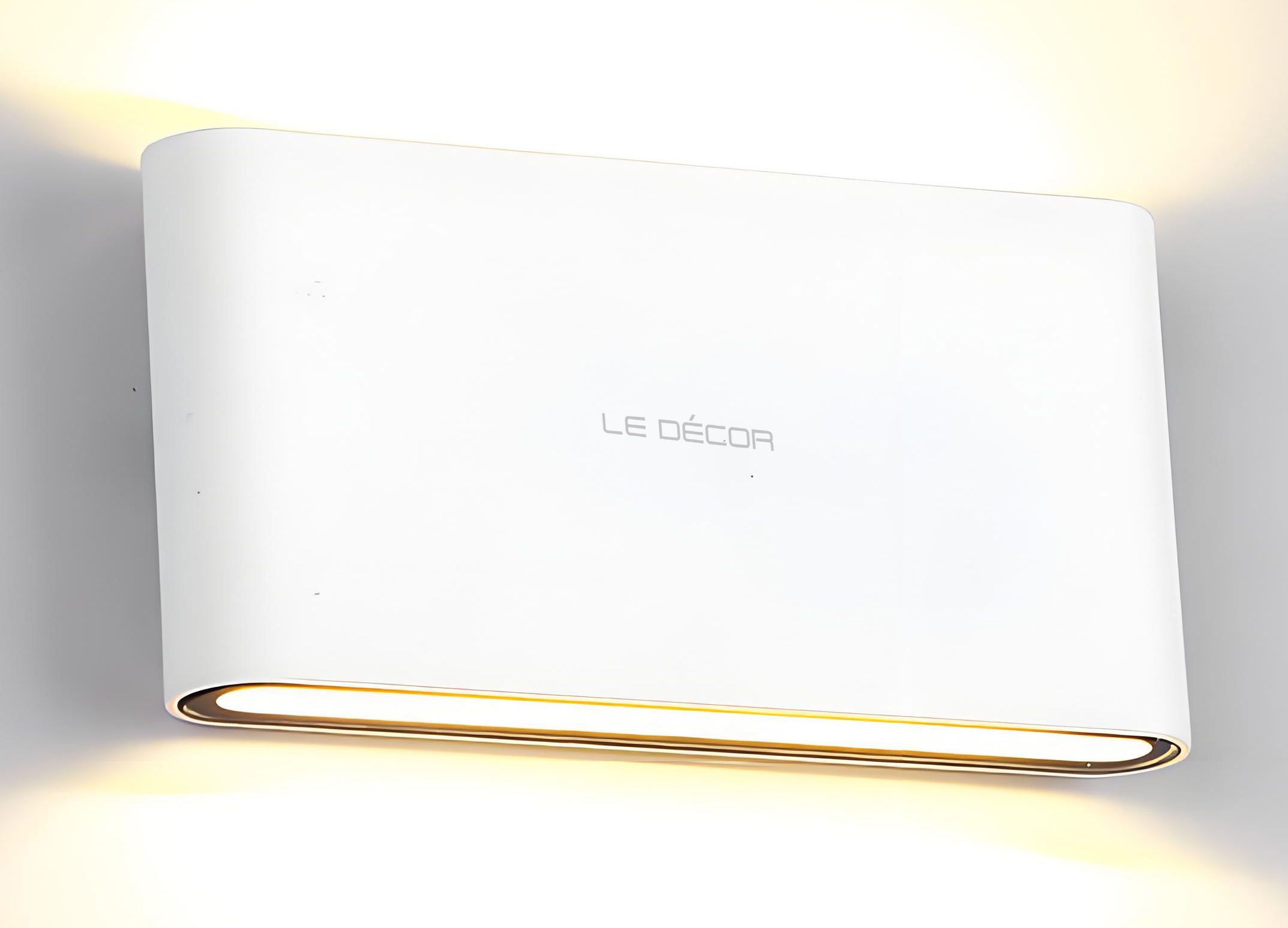

- Elegant design, up-down wall light
- More stable quality
- IP65 weatherproof
- Super bright energy saving chip
- Low power consumption and Low heat dissipation
- Easy installation
| Light Source: | EPISTAR LED chip |
| Power: | 12W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 2700K/3000K/4000K/5000K/6000K |
| Input Voltage: | AC85-265V |
| Beam Angle: | 60° |
| Material: | Aluminium Alloy |
| Finishing Color: | Black, White and Grey |
| Driver: | Isolated LED Driver |
| IP Rating: | IP65 |
| Mounting: | Surface Mounted |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.

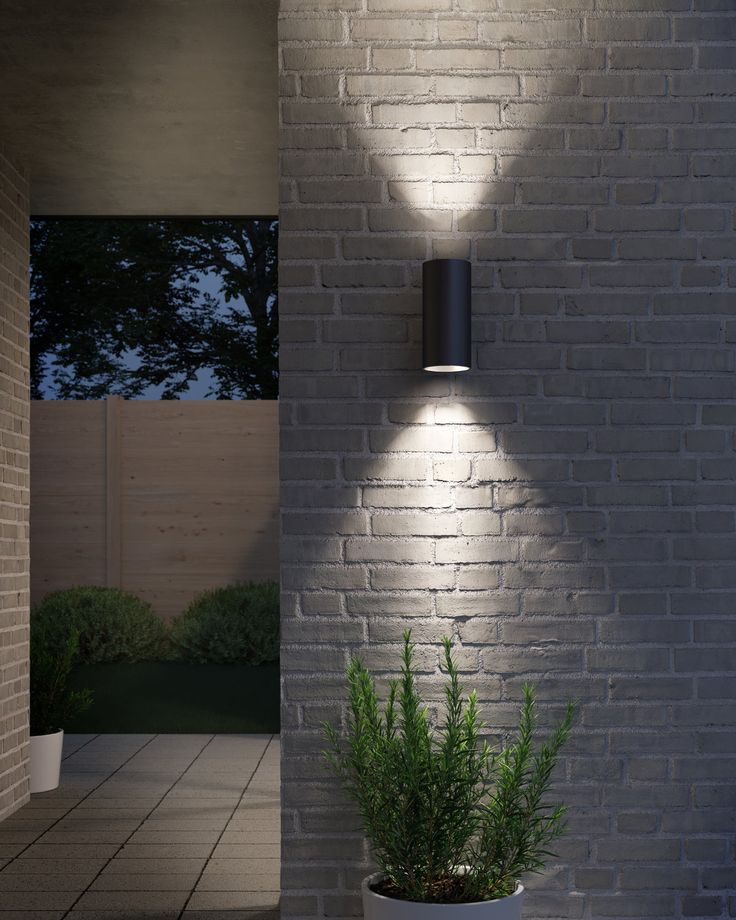

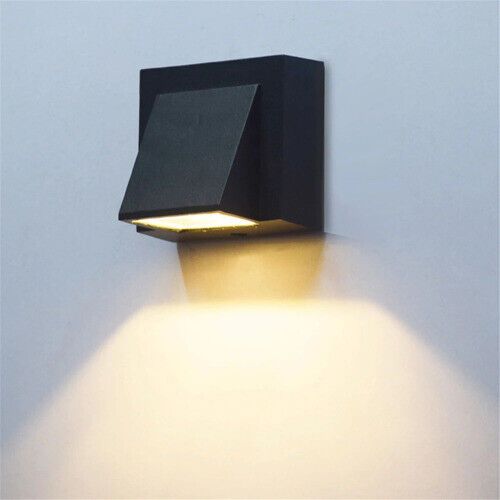

LD-8514-LED Wall Light
LD-8514-LED Wall Light
- Elegant Design,down wall light
- More stable quality
- IP65 weatherproof
- Super bright energy saving chip
- Low power consumption and Low heat dissipation
- Easy installation
| Light Source: | EPISTAR LED chip |
| Power: | 6W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 700K/3000K/4000K/5000K/6000K |
| Input Voltage: | AC85-265V |
| Beam Angle: | 60° |
| Material: | Aluminium Alloy |
| Finishing Color: | Black, White and Grey |
| Driver: | Isolated LED Driver |
| IP Rating: | IP65 |
| Mounting: | Surface Mounted |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.

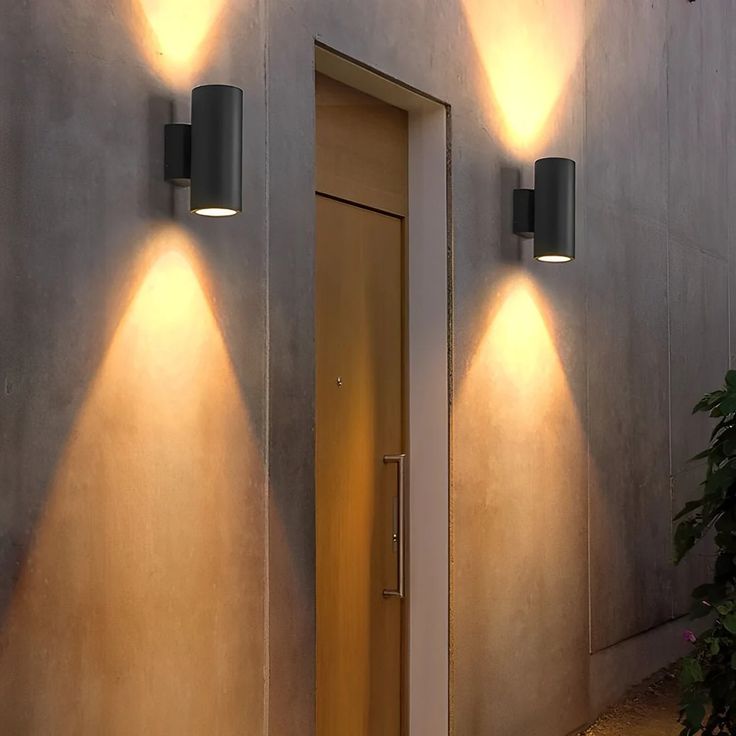

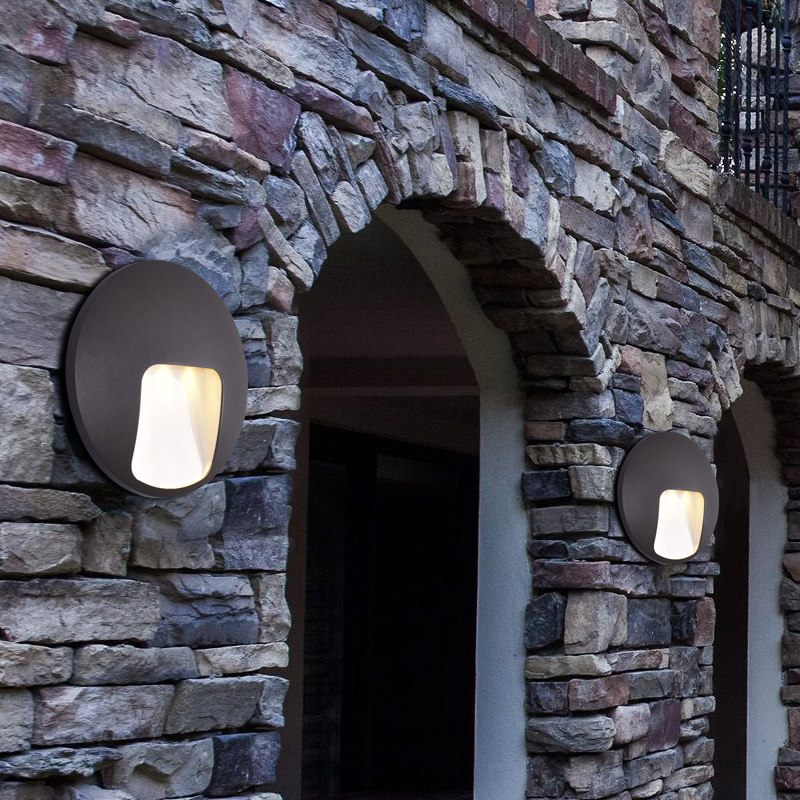

LD-8515-LED Wall Light
LD-8515-LED Wall Light
- Unique design, soft light, glare-free, wider and more uniform lighting spot
- IP65 weatherproof
- Super bright energy saving chip
- Multi color Optional: White, Black, Grey
- Easy installation
| Light Source: | EPISTAR LED chip |
| Power: | 12W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 3000K/4000K/5000K/6000K |
| Input Voltage: | AC85-265V |
| Beam Angle: | 120° |
| Material: | Aluminium Alloy |
| Finishing Color: | Black, White and Grey |
| Driver: | Isolated LED Driver Power |
| IP Rating: | IP65 |
| Mounting: | Surface Mounted |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.

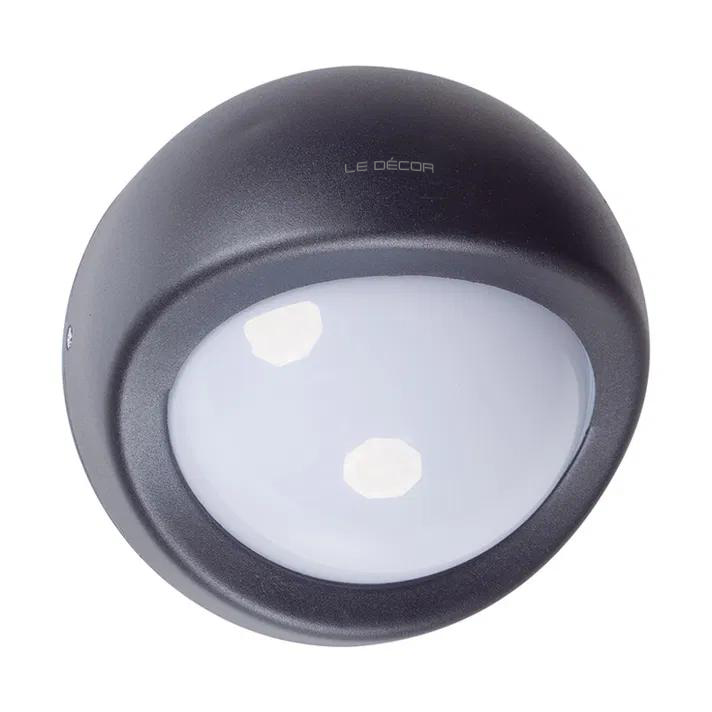

LD-8516-LED Wall Light
LD-8516-LED Wall Light
- Unique design, soft light, glare-free, wider and more uniform lighting spot
- IP65 weatherproof
- Super bright energy saving chip
- Multi color Optional: White, Black, Grey
- Easy installation
| Light Source: | EPISTAR LED chip |
| Power: | 12W |
| Lumen Efficacy: | 100-110lm/W |
| CCT: | 3000K/4000K/5000K/6000K |
| Input Voltage: | AC85-265V |
| Beam Angle: | 120° |
| Material: | Aluminium Alloy |
| Finishing Color: | Black, White and Grey |
| Driver: | Isolated LED Driver |
| IP Rating: | IP65 |
| Mounting: | Surface Mounted |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.

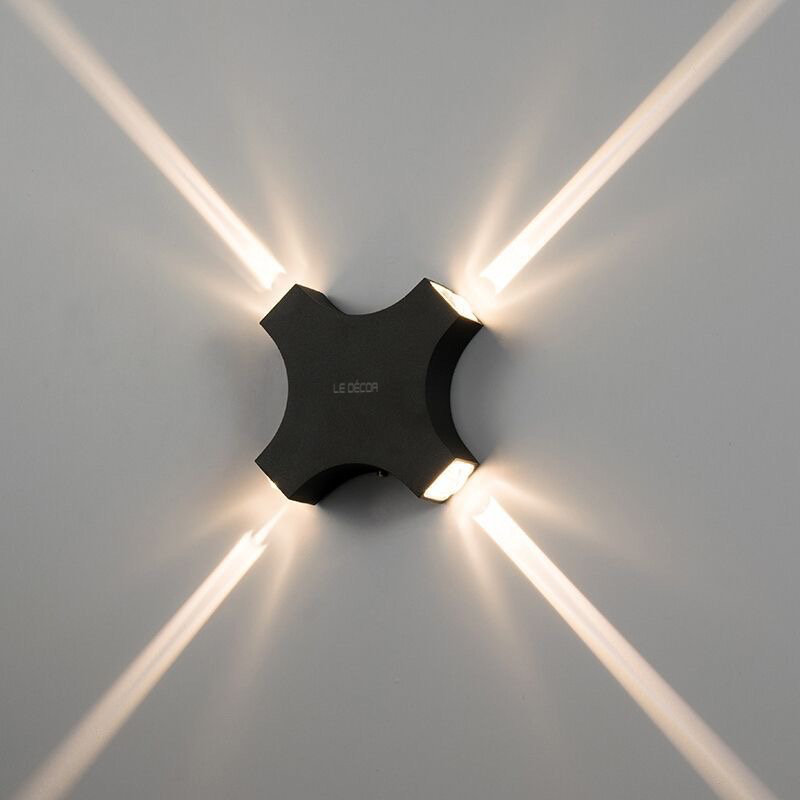

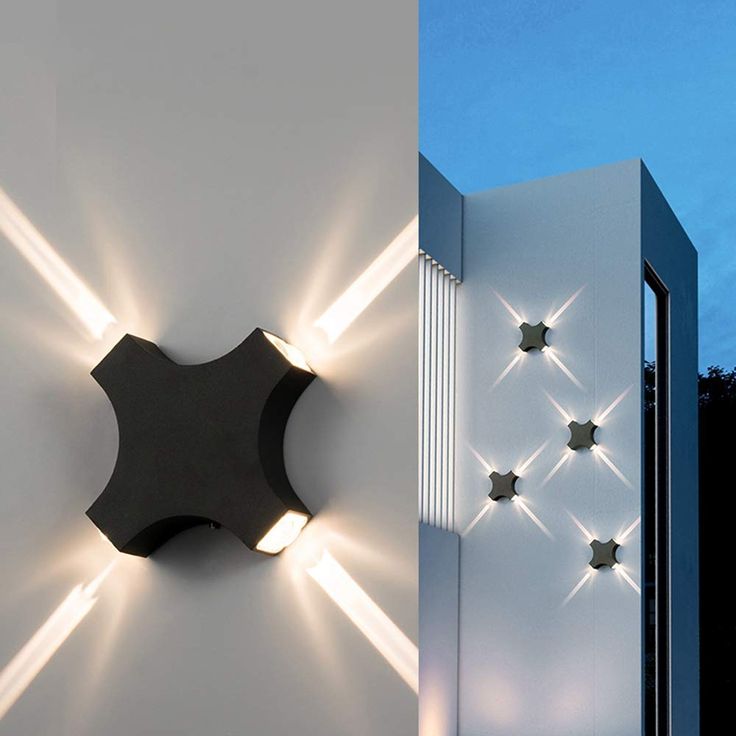

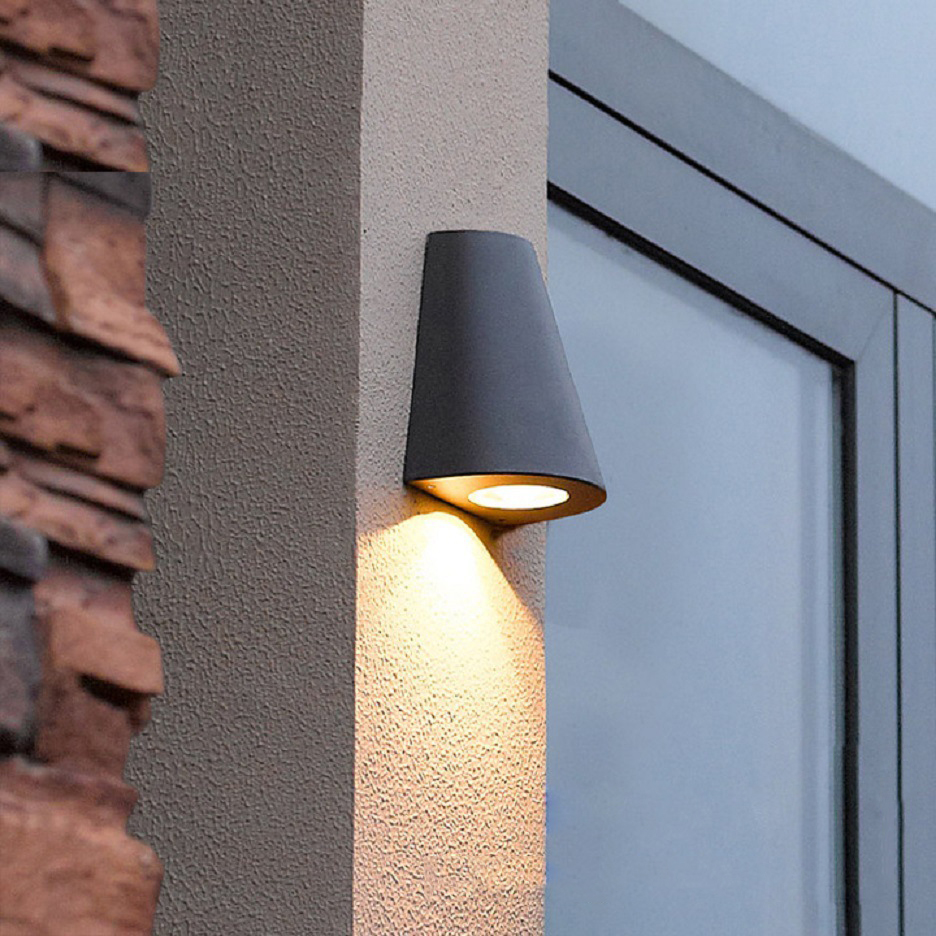

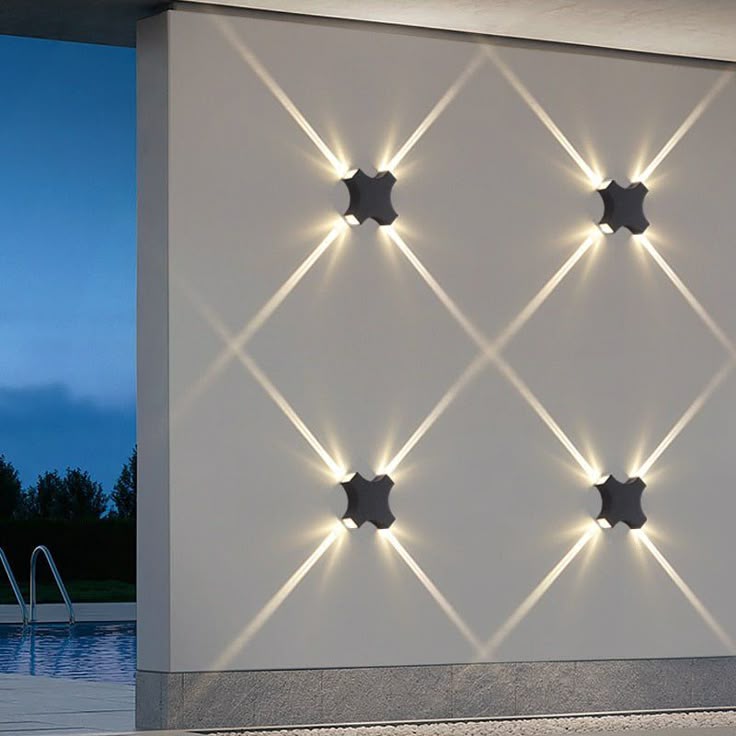

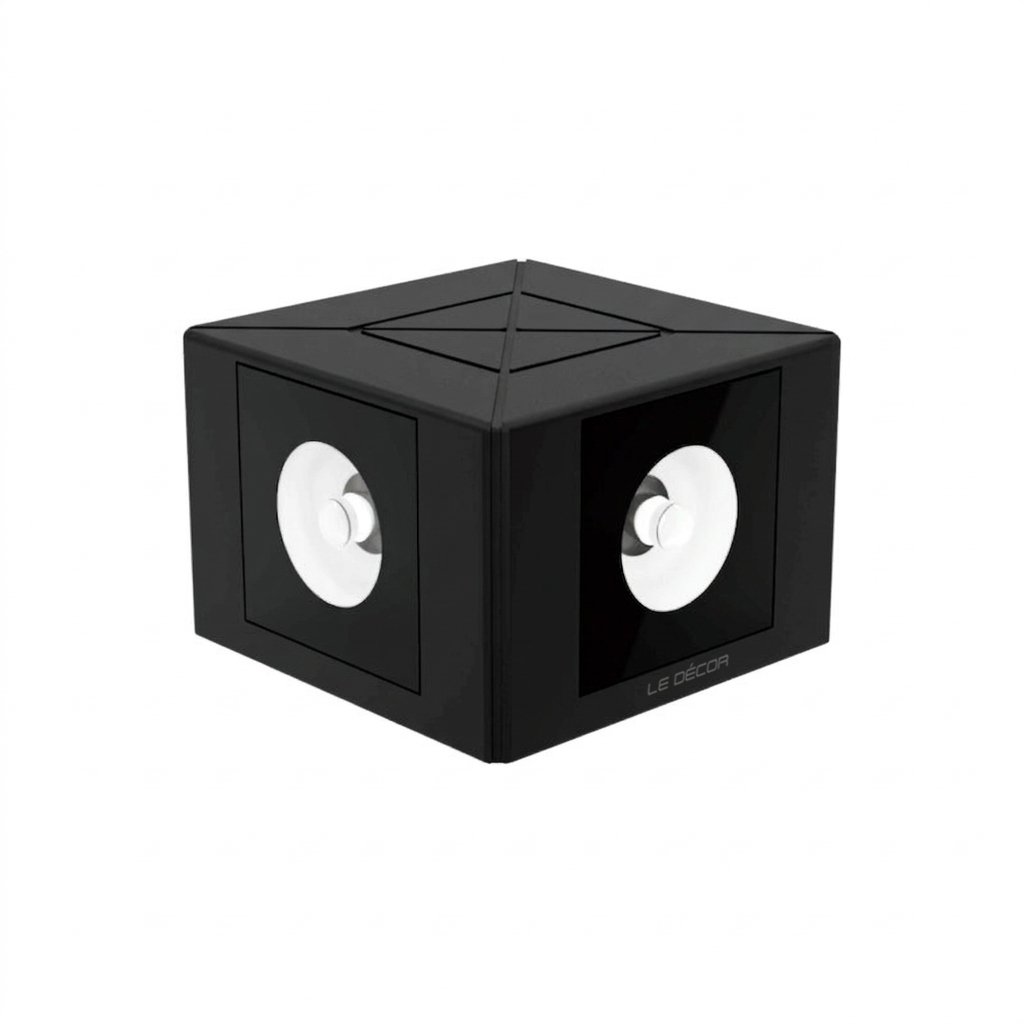

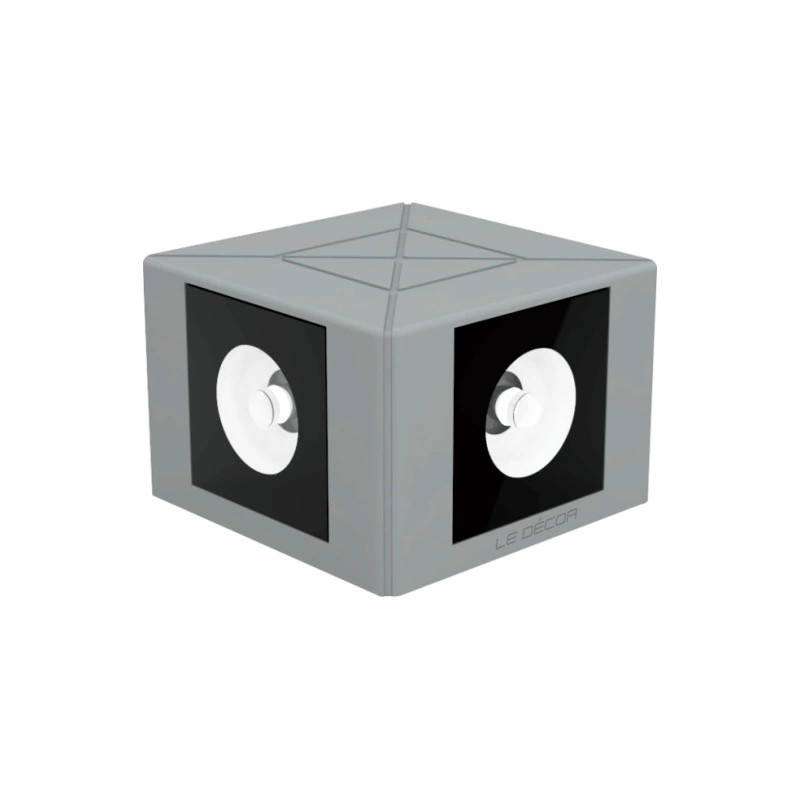

LD-8517-LED Wall Light
LD-8517-LED Wall Light

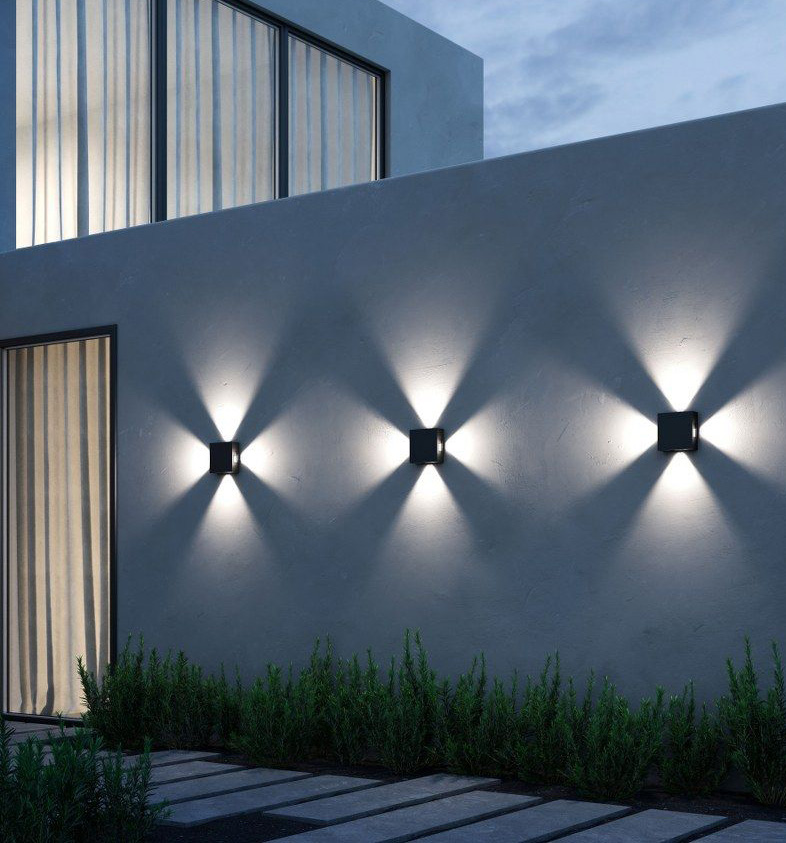

- Unique special lighting effects , could meet different building’s space requirement for lighting
- More stable quality
- IP65 weatherproof
- Low power consumption and Low heat dissipation
- Easy installation
- Super bright energy saving chip
| Light Source: | CREE LED chip |
| Power: | 4x3W |
| Lumen Efficacy: | 100lm/W |
| CCT: | 2700K/3000K/4000K/5000K/6000K |
| Input Voltage: | AC85-265V |
| Beam Angle: | 360° |
| Material: | Aluminium |
| Finishing Color: | Black, Grey |
| Driver: | In-built |
| IP Rating: | IP65 |
| Mounting: | Surface Mounted |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.

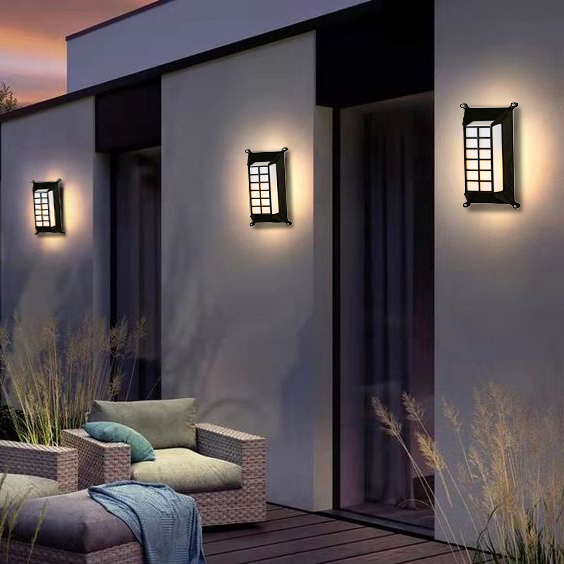

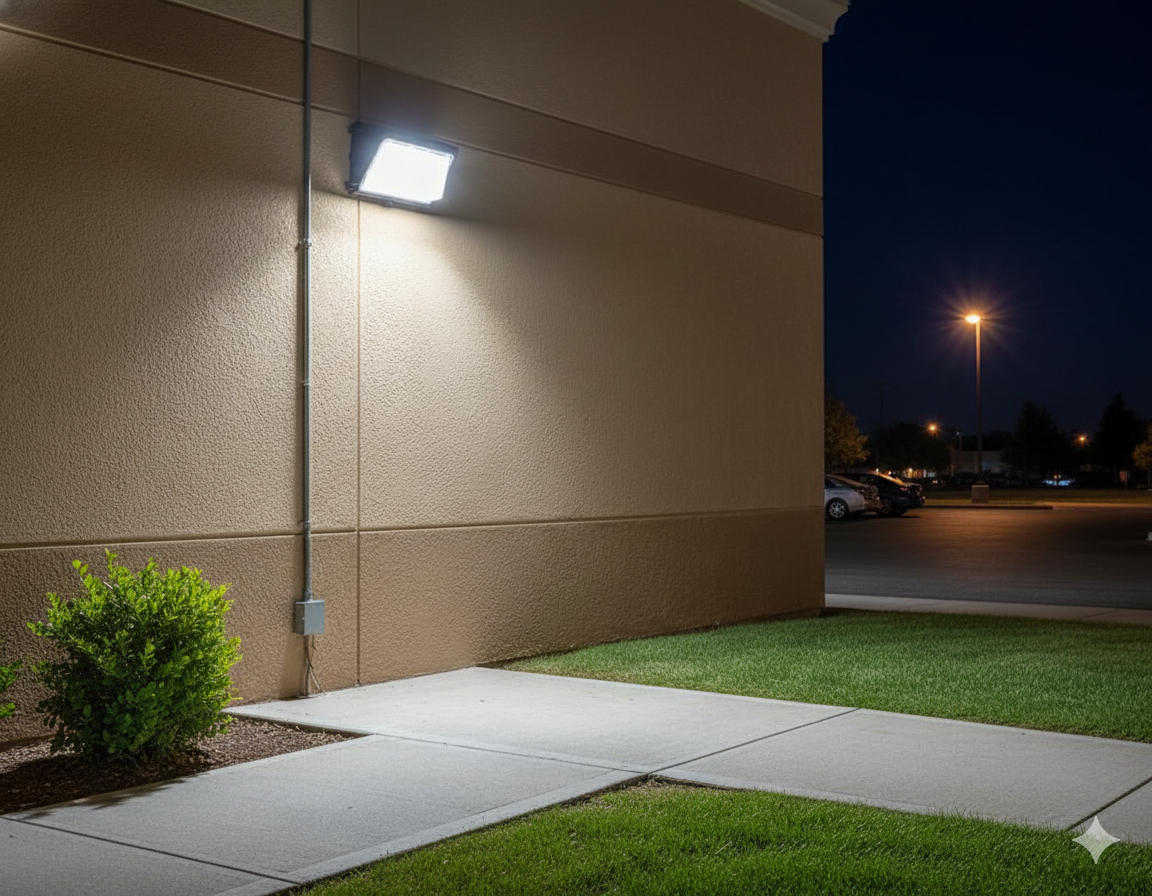

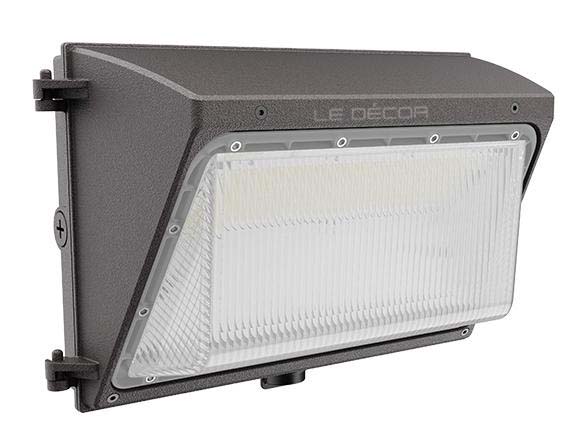

LD-20503-LED Wall Pack Light
LD-20503-LED Wall Pack Light
- Delivers high efficiency of up to 150 lm/W
- High-UV-resistant polycarbonate lens option ensures uniform illumination and a wide beam spread
- Die-cast aluminium housing ensures excellent heat dissipation
- Rated IP65 for waterproof protection
| Light Source: | SMD 2835 |
| Power: | 40W/80W/120W/150W |
| Lumen Efficacy: | 150lm/W |
| CCT: | 2700K/3000K/4000K/5700K/6000K |
| Input Voltage: | AC120-277V |
| Beam Angle: | Type IV |
| Material: | Die-cast aluminium |
| Finishing Color: | Bronze, Black, Gray |
| Driver: | Standard |
| IP Rating: | IP65 |
| Mounting: | Wall Mounted |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.

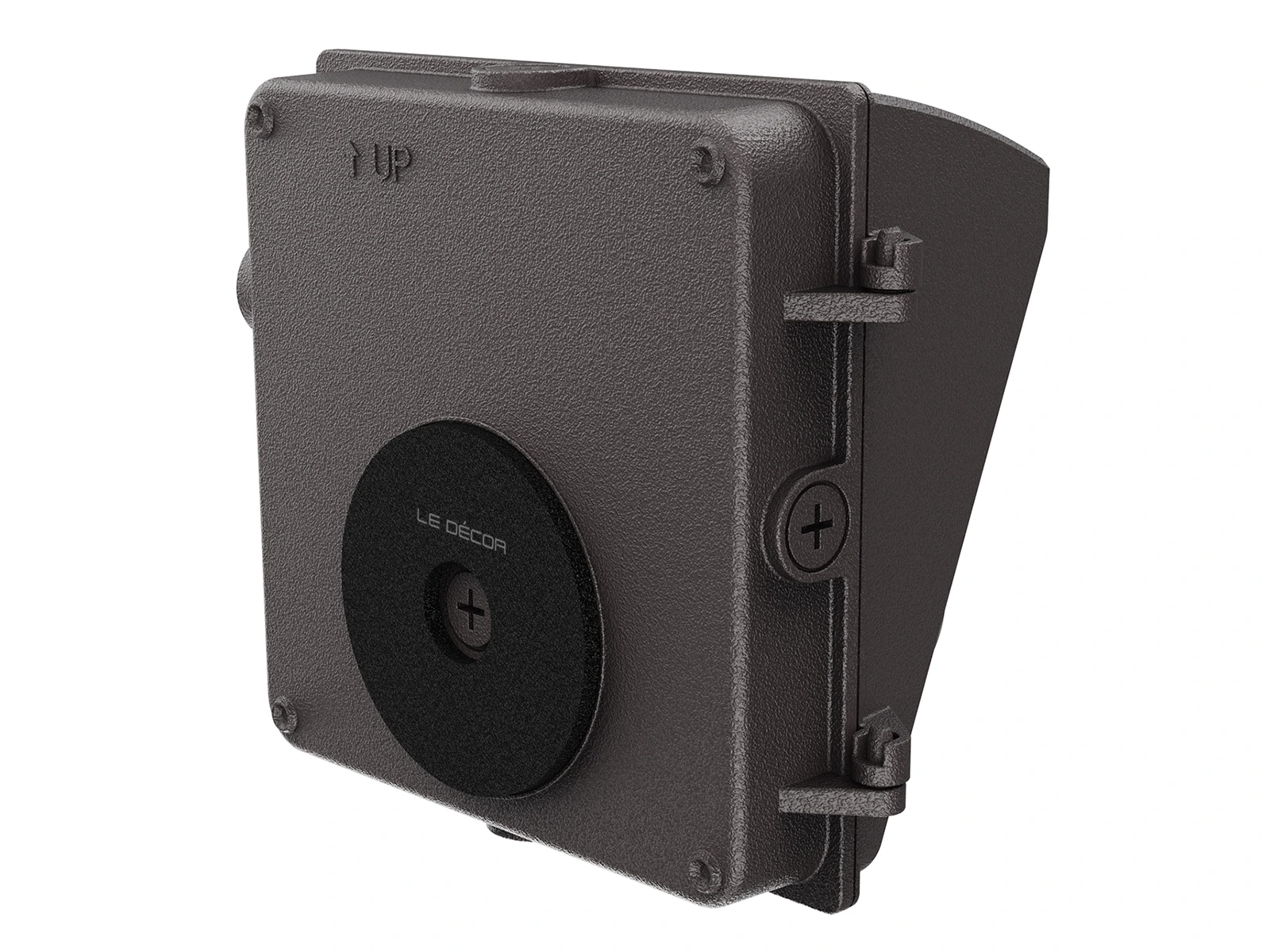

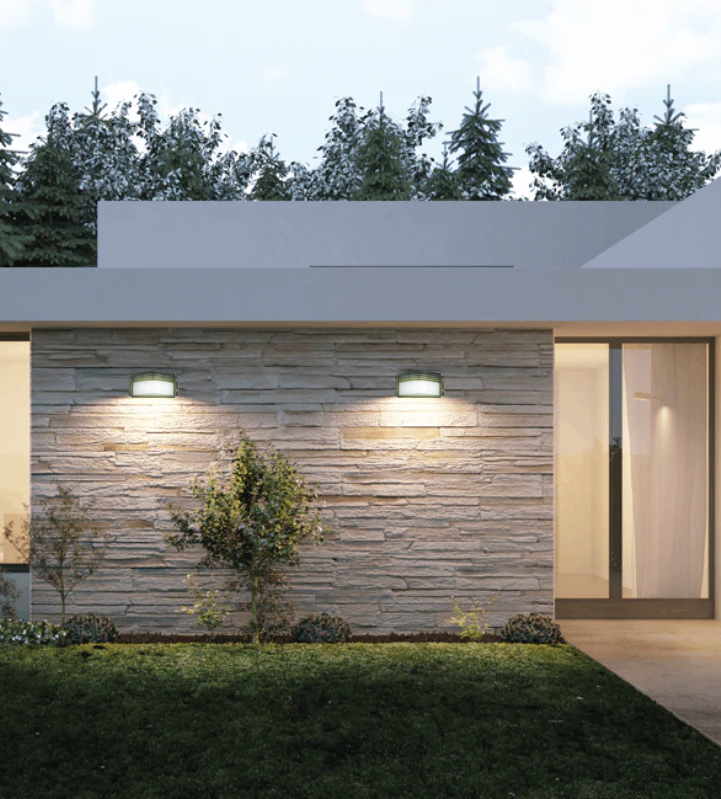

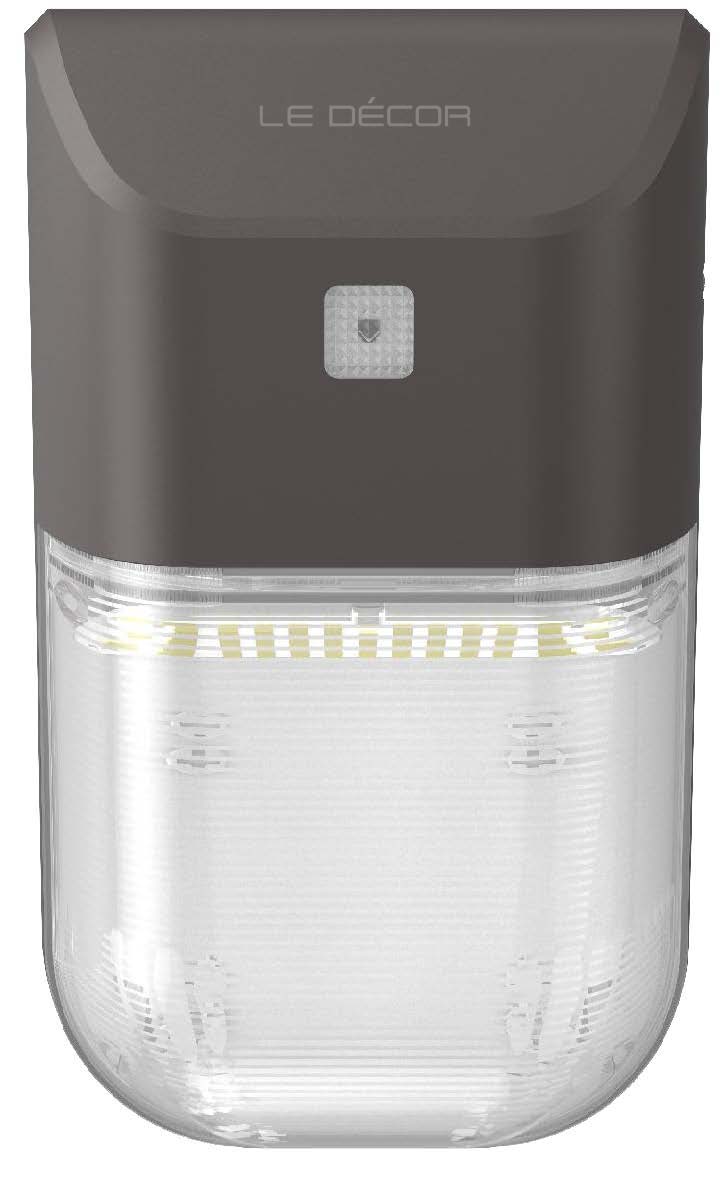

LD-20504-LED Wall Pack Light
LD-20504-LED Wall Pack Light
- Efficiency reaches up to 120 lm/W
- Driver-on-board design offers excellent cost performance
- Modern exterior design with an IP65 water proofing
- Advanced optical structure minimizes glare and reduces light pollution
- Instant start, no noise, no flickering
- Installation easy and safe
| Light Source: | SMD 2835 |
| Power: | 15W/20W |
| Lumen Efficacy: | 120lm/W |
| CCT: | 2700K/3000K/3500K/4000K/5000K |
| Input Voltage: | AC120V |
| Beam Angle: | 100° |
| Material: | Polycarbonate |
| Finishing Color: | Bronze and White, Black |
| Driver: | Standard |
| IP Rating: | IP65 |
| Mounting: | Wall Mounted |
| Lifespan: | 50,000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
