LED Track Light & Magnetic Track Light

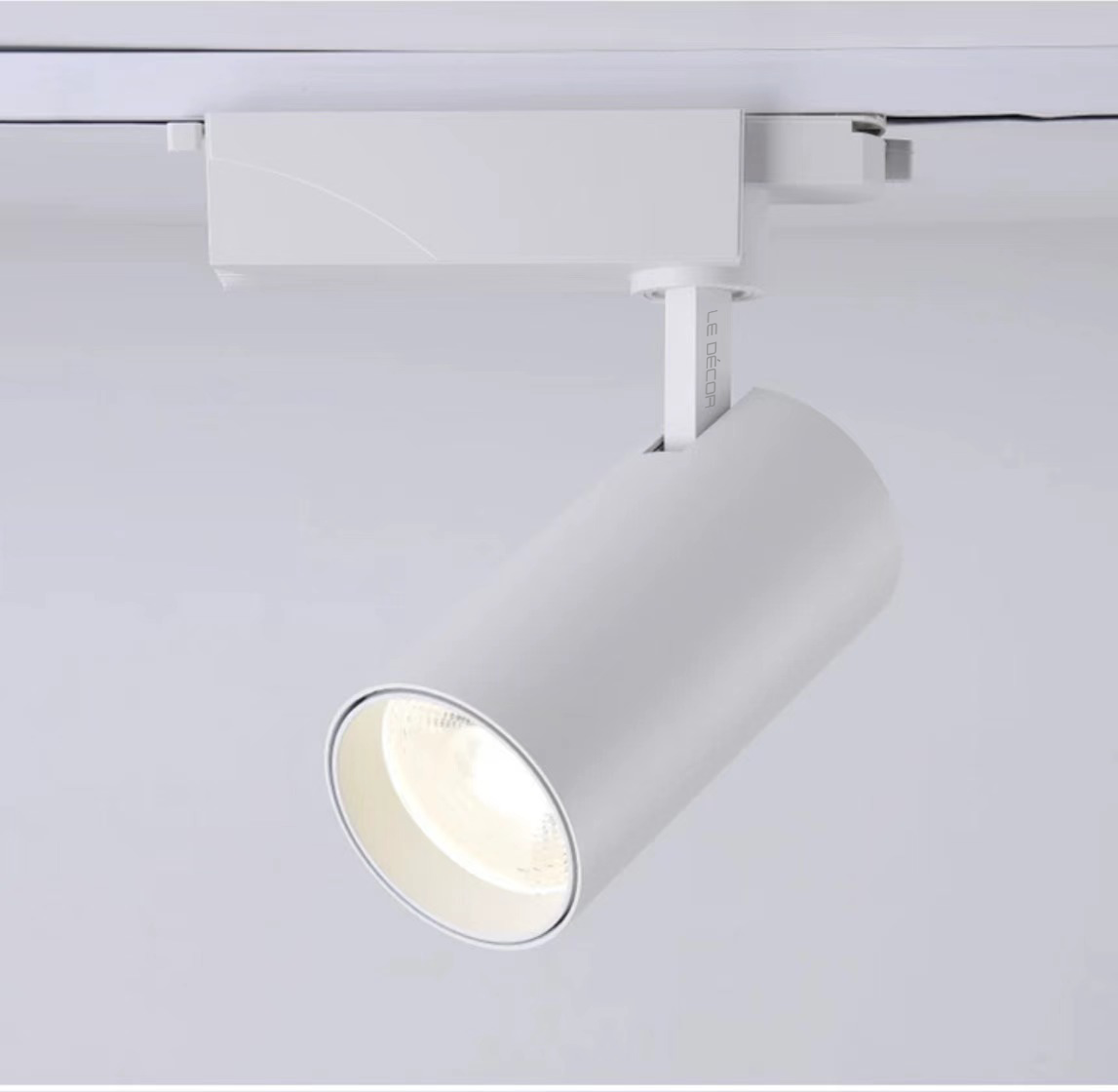

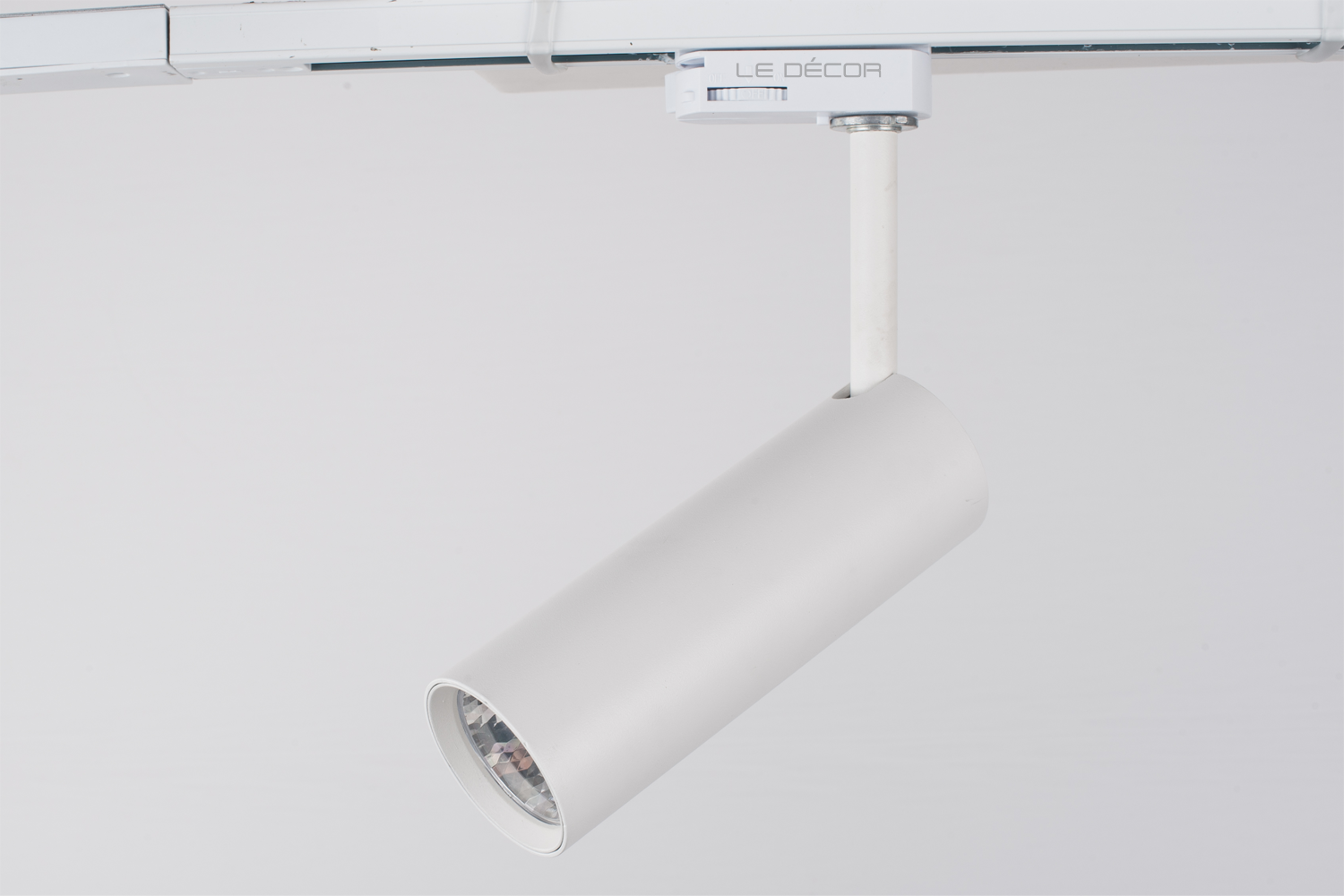

LD-11003-LED Zoomable Track Light

High quality COB LED Chip
High quality aluminium heat sink to ensure ingenious shape and increase heat dissipation space
Tiltable design for different requirements
Built-in driver, simple and compact design
Estimated durability 10+ years

Light Source:	COB LED chip
Power:	15W/20W/25W/30W
Lumen Efficacy:	100-110lm/W
CCT:	2700K/3000K/4000K/5000K/5700K
Input Voltage:	AC220-240V
Beam Angle:	15°-50°
Material:	Aluminium
Finishing Color:	White, Black
Driver:	Standard
IP Rating:	IP20
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

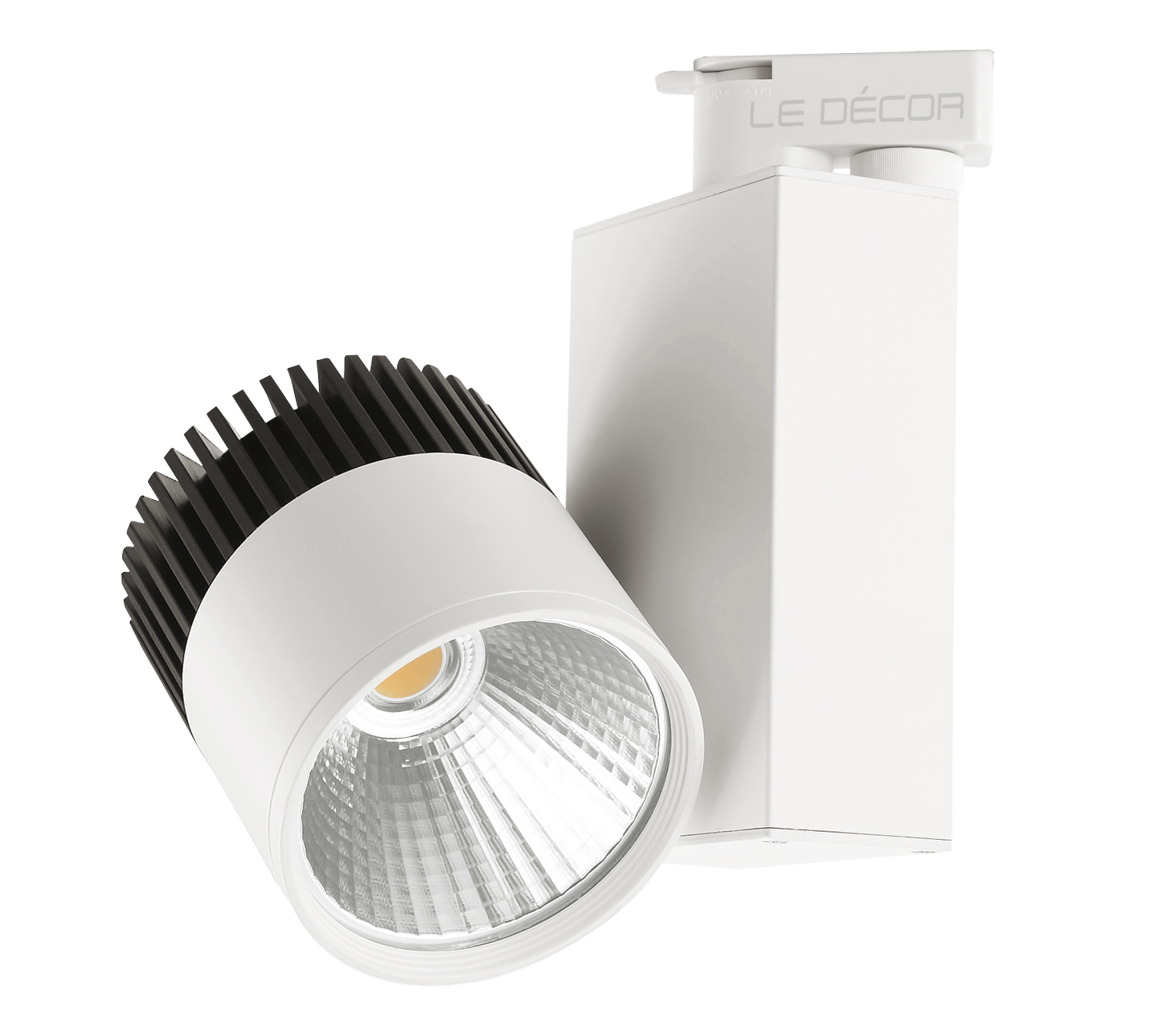

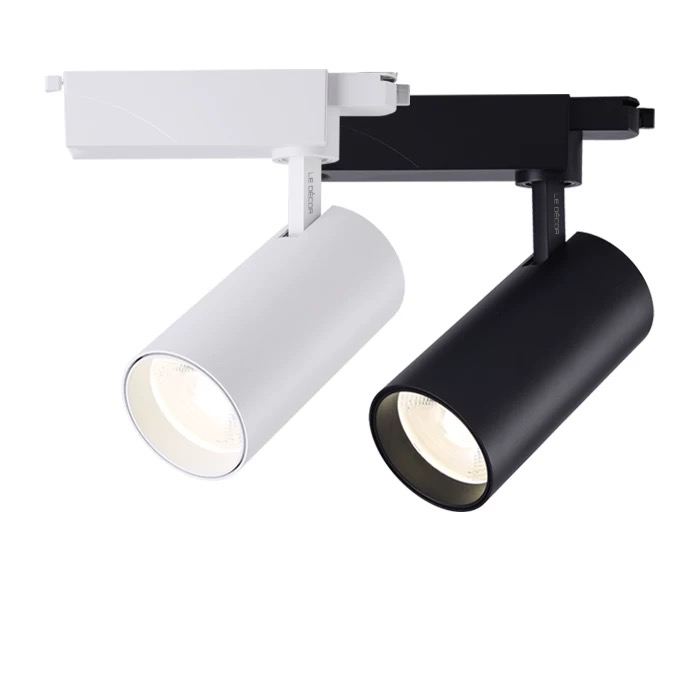

LD-11004-LED Track Light

High quality Die-cast aluminium housing, ensure excellent heat dissipation
2 wires, 3 wires and 4 wires integrated driver adapter and track adapter option available
Multiple beam angle for choice
High quality COB LED Chip
Estimated durability 10+ years

Light Source:	COB LED chip
Power:	10W/20W/30W/40W/50W
Lumen Efficacy:	100-110lm/W
CCT:	2700K/3000K/4000K/5000K/5700K
Input Voltage:	AC220-240V
Beam Angle:	15°,24°,38°
Material:	Die-cast aluminium
Finishing Color:	Black, White
Driver:	Standard
IP Rating:	IP20
Mounting:	Recessed
Lifespan:	50,000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

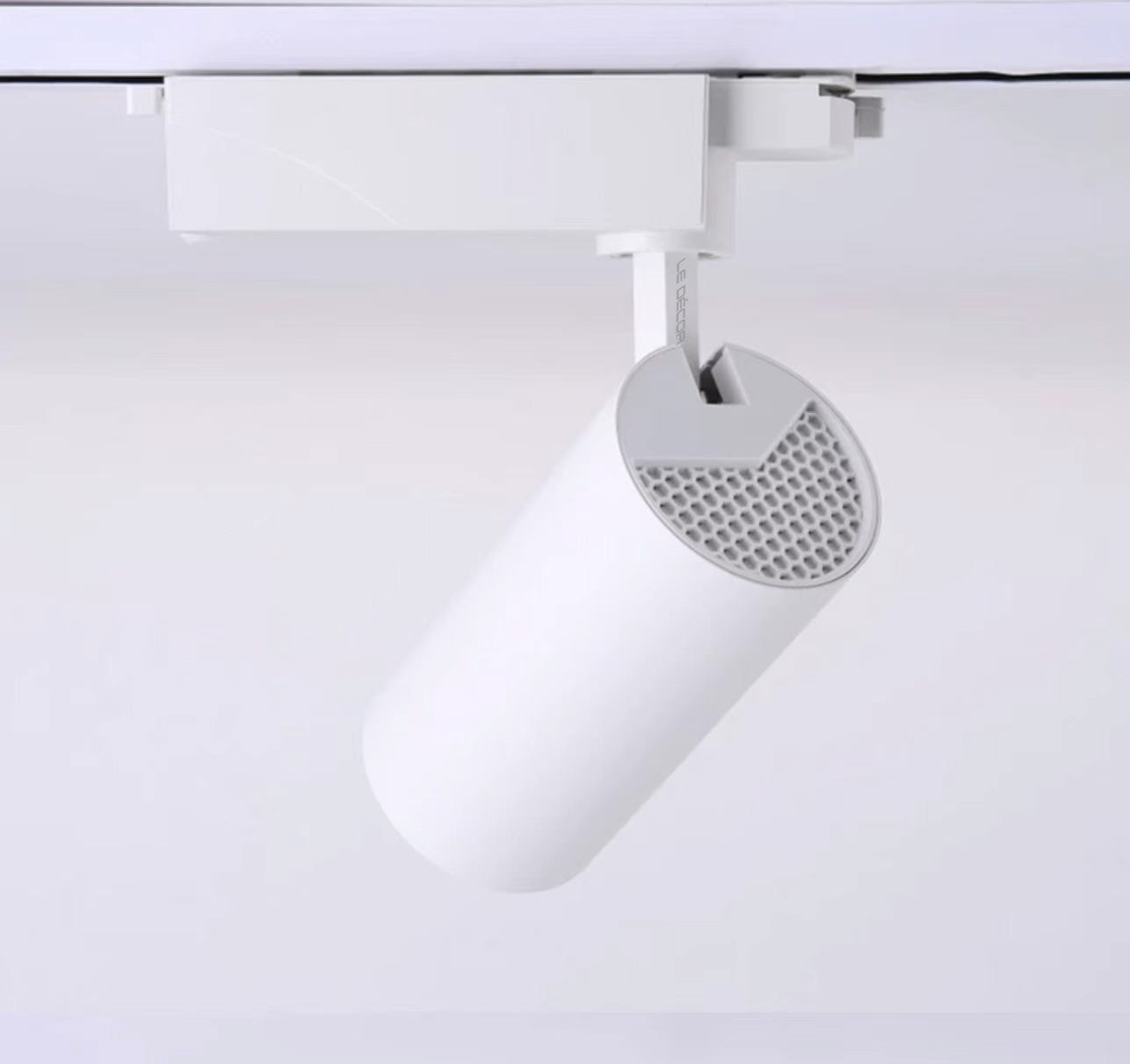

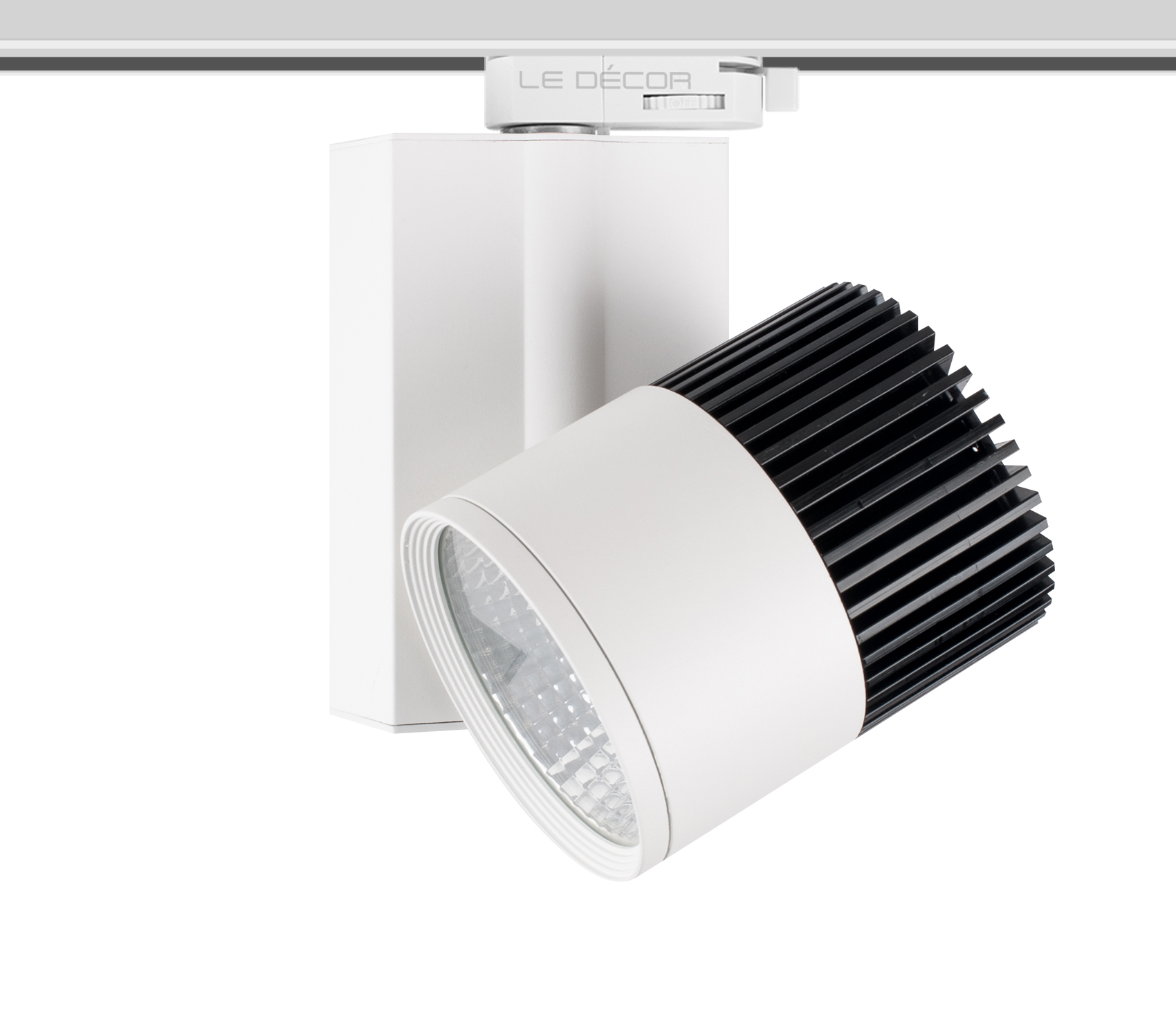

LD-11315-LED Track Light

Adopting high lumen COB led with uniform light
High quality aluminium housing
System light efficacy of 80lm/w
CRI>90 for a more real lighting effect
Refined components and design, guarantee a long life span of over 50000 hours

Light Source:	Bridgelux LED chip
Power:	10W/15W/20W/24W/35W
Lumen Efficacy:	100-110lm/W
CCT:	2700K/3000K/4000K/6000K
Input Voltage:	AC220-240V
Beam Angle:	15°,24°,36°
Material:	Aluminium
Finishing Color:	White and Black
Driver:	Standard
IP Rating:	IP20
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

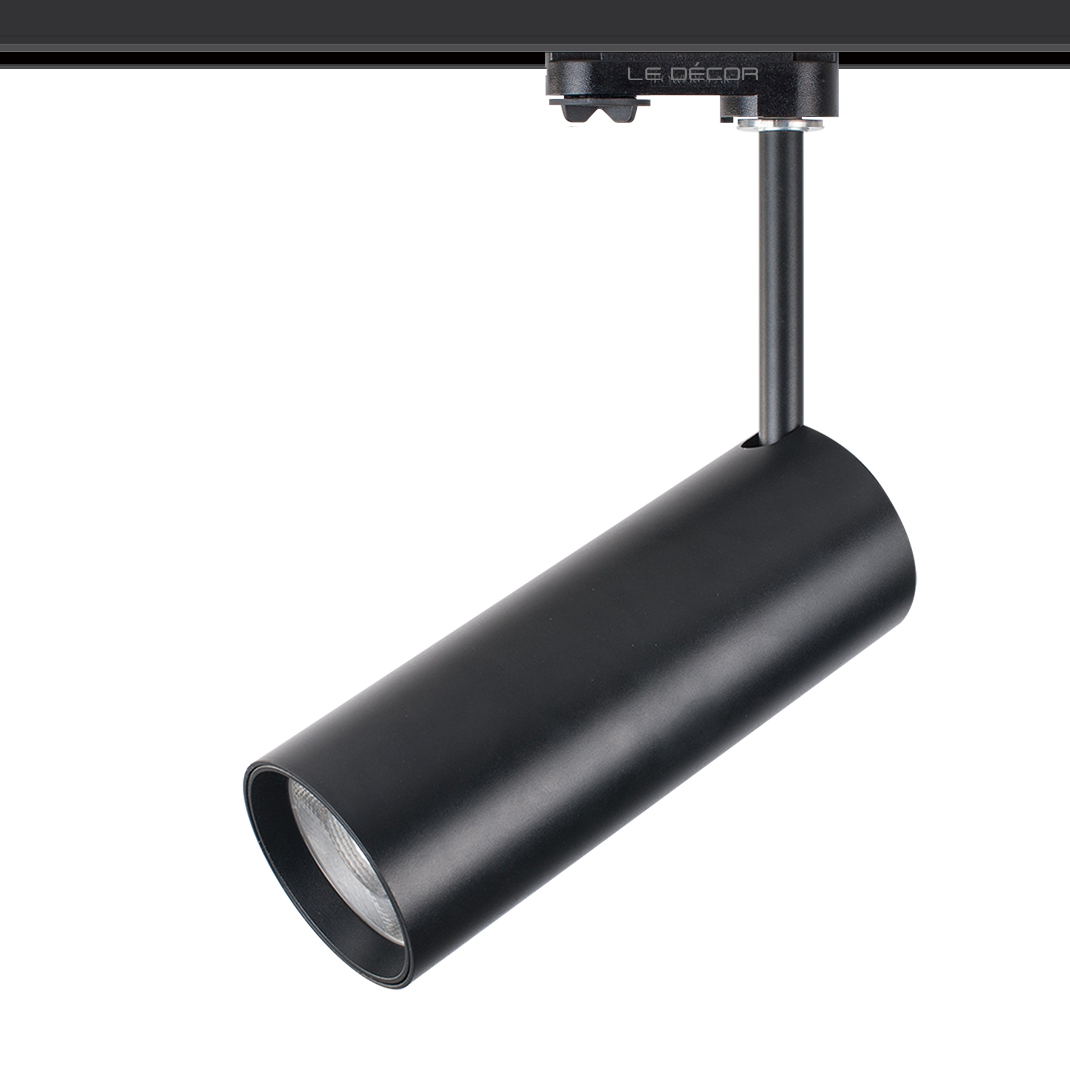

LD-11016-LED Track Light

High quality aluminium housing
High lumen, high CRI and uniform lighting effect
System light efficacy of 100lm/w
Estimated durability 10+ years

Light Source:	COB LED chip
Power:	8W/15W/20W
Lumen Efficacy:	100-110lm/W
CCT:	2700K/3000K/4000K/5000K/5700K
Input Voltage:	AC220-240V
Beam Angle:	15°,24°,38°
Material:	Aluminium
Finishing Color:	White and Black
Driver:	Standard
IP Rating:	IP20
Mounting:	Recessed
Lifespan:	50,000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

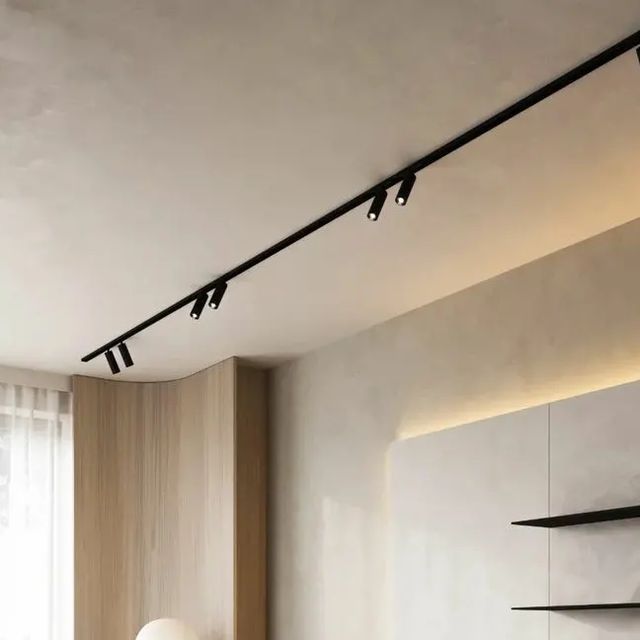

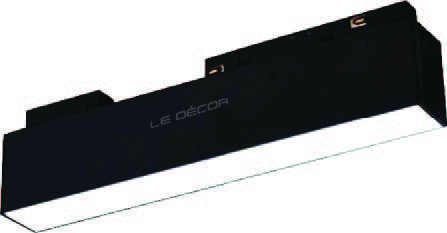

LD-8217-LED Magnetic Track Light

High quality aluminium housing
Excellent heat dissipation
Light Source -High Efficient Bridgelux or Cree LED Chip
Lumen efficacy up to 110lm/W
DALI/0-10V/Triac Dimming optional
Bluetooth controlling system

Light Source:	Bridgelux/Cree LED chip
Power:	15W/18W/20W/30W/40W
Lumen Efficacy:	100-110lm/W
CCT:	3000K/4000K/5000K/6000K
Input Voltage:	DC48V
Beam Angle:	110°
Material:	Aluminium
Finishing Color:	Matt Black/Matt White
Driver:	Standard
IP Rating:	IP20
Mounting:	Recessed
Lifespan:	50,000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

LD-8218-LED Magnetic Track Light

High quality aluminium housing
Excellent heat dissipation
Light Source -High Efficient Bridgelux or Cree LED Chip
Lumen efficacy up to 110lm/W
DALI/0-10V/Triac Dimming optional
Bluetooth controlling system

Light Source:	Bridgelux/Cree LED chip
Power:	10W/18W/24W/30W
Lumen Efficacy:	100-110lm/W
CCT:	3000K/4000K/5000K/6000K
Input Voltage:	DC48V
Beam Angle:	110°
Material:	Aluminium
Finishing Color:	Matt Black/Matt White
Driver:	Standard
IP Rating:	IP20
Mounting:	Recessed
Lifespan:	50,000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

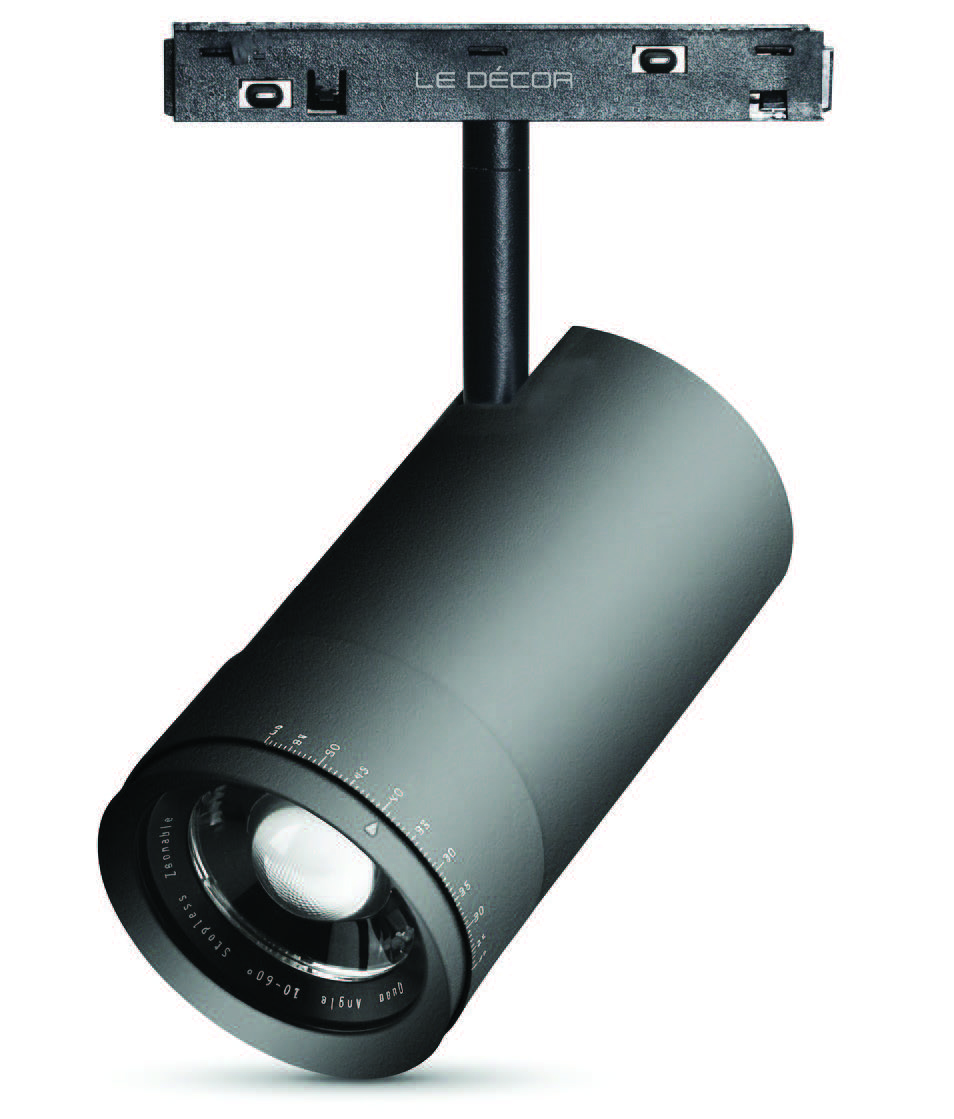

LD-8219-LED Magnetic Track Light

High quality aluminium housing
Excellent heat dissipation.
Light Source -High Efficient Bridgelux or Cree LED Chip
Lumen efficacy upto 110lm/W
DALI/0-10V/Triac Dimming optional
Bluetooth controlling system

Light Source:	Bridgelux/Cree LED chip
Power:	10W/18W/24W/30W
Lumen Efficacy:	100-110lm/W
CCT:	3000K/4000K/5000K/6000K
Input Voltage:	DC48V
Beam Angle:	15°, 25°, 35°
Material:	Aluminium
Finishing Color:	Matt Black/Matt White
Driver:	Standard
IP Rating:	IP20
Mounting:	Recessed
Lifespan:	50,000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

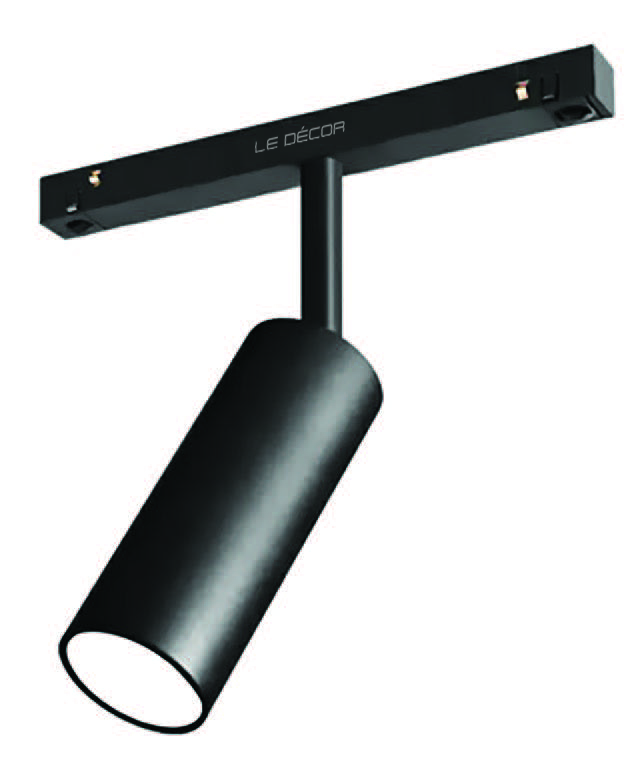

LD-8220-LED Magnetic Track Light

High quality aluminium housing
Excellent heat dissipation
Light Source -High Efficient Bridgelux or Cree LED Chip
Lumen efficacy up to 110lm/W
DALI/0-10V/Triac Dimming optional
Bluetooth controlling system

Light Source:	Bridgelux/Cree LED chip
Power:	5W/12W/18W/24W/30W
Lumen Efficacy:	100-110lm/W
CCT:	3000K/4000K/5000K/6000K
Input Voltage:	DC48V
Beam Angle:	15°, 25°, 35°
Material:	Aluminium
Finishing Color:	Matt Black/Matt White
Driver:	Standard
IP Rating:	IP20
Mounting:	Recessed
Lifespan:	50,000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

LD-8221-LED Magnetic Track Light

High quality aluminium housing
Excellent heat dissipation
Light Source -High Efficient Bridgelux or Cree LED Chip
Lumen efficacy up to 110lm/W
DALI/0-10V/Triac Dimming optional
Bluetooth controlling system

Light Source:	Bridgelux/Cree LED chip
Power:	5W/12W/18W/24W/30W
Lumen Efficacy:	100-110lm/W
CCT:	3000K/4000K/5000K/6000K
Input Voltage:	DC48V
Beam Angle:	15°/25°/35°
Material:	Aluminium
Finishing Color:	Matt Black/Matt White
Driver:	Standard
IP Rating:	IP20
Mounting:	Recessed
Lifespan:	50,000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

LD-8222-LED Magnetic Track Light

High quality aluminium housing
Excellent heat dissipation
Light Source -High Efficient Bridgelux or Cree LED Chip
Lumen efficacy up to 110lm/W
DALI/0-10V/Triac Dimming optional
Bluetooth controlling system

Light Source:	Bridgelux/Cree LED chip
Power:	3W/7W/10W/15W/25W
Lumen Efficacy:	100-110lm/W
CCT:	3000K/4000K/5000K/6000K
Input Voltage:	DC48V
Beam Angle:	15°/25°/35°
Material:	Aluminium
Finishing Color:	Matt Black/Matt White
Driver:	Standard
IP Rating:	IP20
Mounting:	Recessed
Lifespan:	50,000hrs

Foot note: For a detailed data sheet, contact the manufacturer.
