LED Panel Light Products

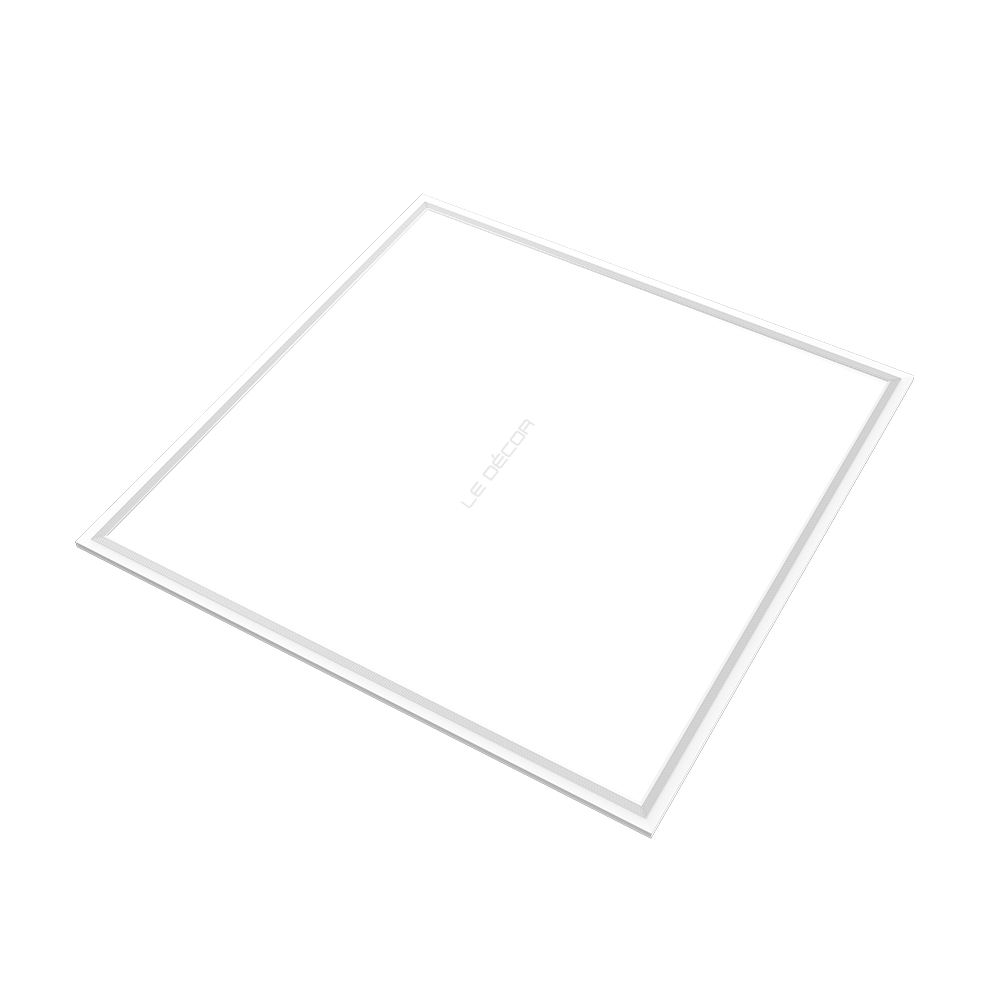

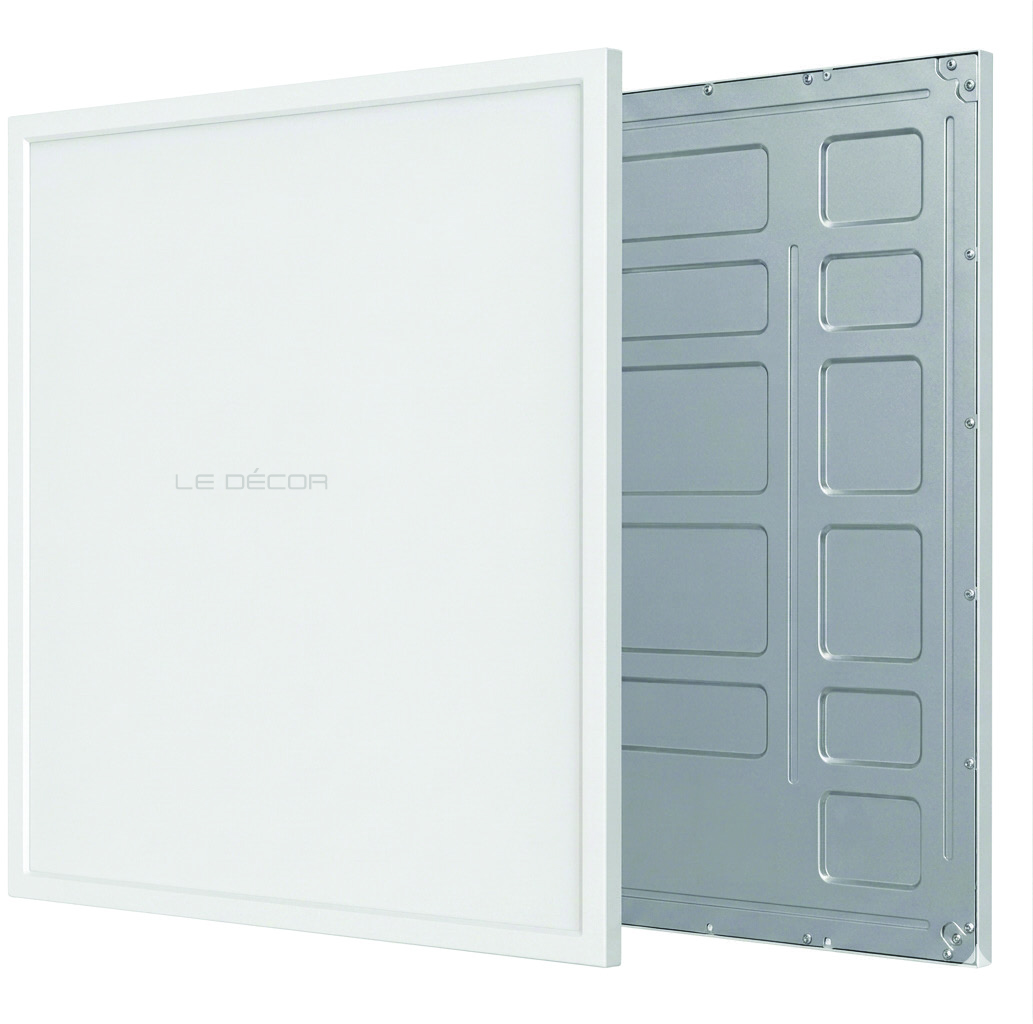

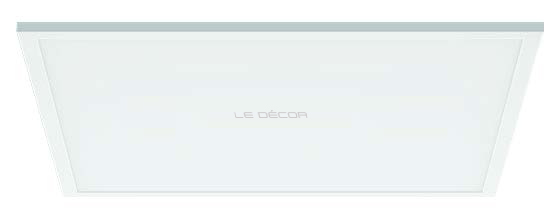

LD-11401-LED Panel Light
LD-11401-LED Panel Light
- High quality aluminium housing
- Robust frame
- LED chips on the back for better heat dissipation
- System light efficacy of 120lm/w
- Optional DALl/0-10V/Triac dimming
- Switchable CCT option available
| Light Source: | EPISTAR SMD2835 LED chip |
| Power: | 36W/40W/48W/60W |
| Lumen Efficacy: | 120lm/W |
| CCT: | 3000K/4000K/5000K/6000K/3CCT |
| Input Voltage: | AC200-240V |
| Beam Angle: | 90°, 20° |
| Material: | Aluminium + PC |
| Finishing Color: | White |
| Driver: | LIFUD |
| IP Rating: | IP20/IP40 |
| Mounting: | Recessed/surface/suspended |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.

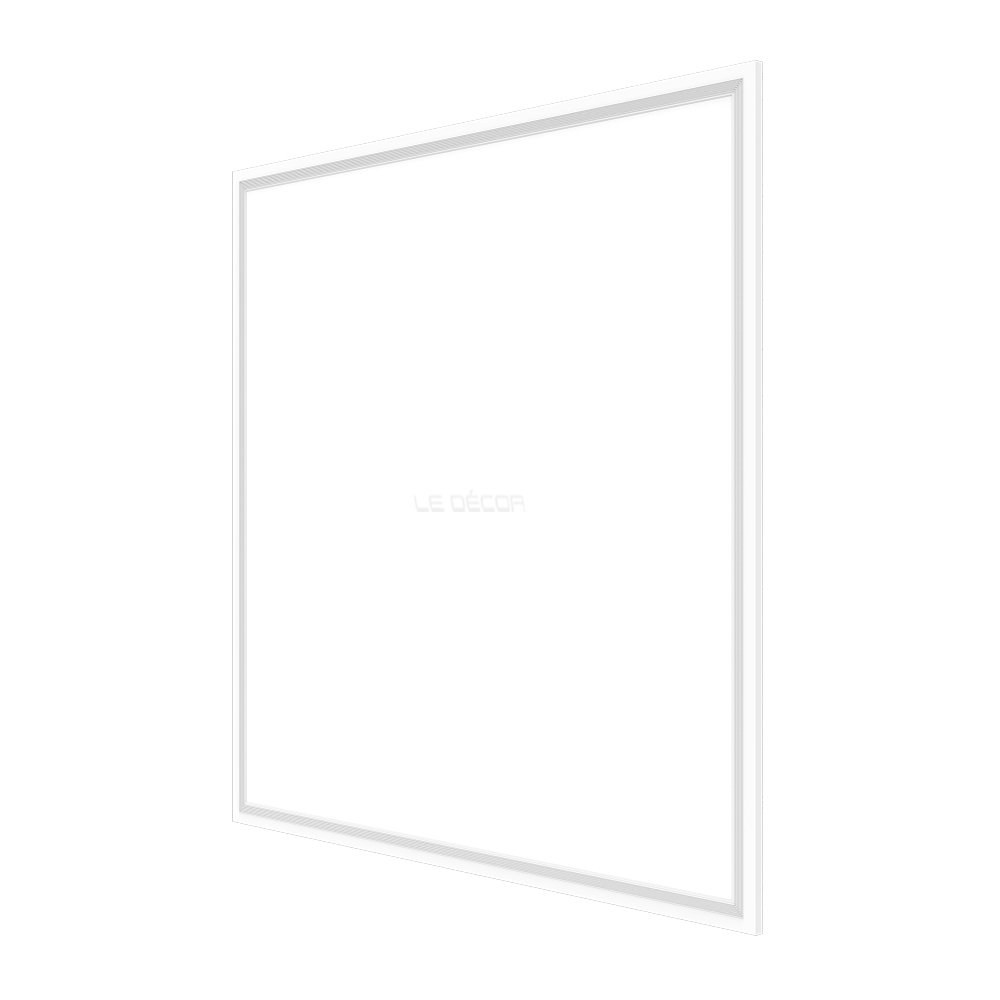

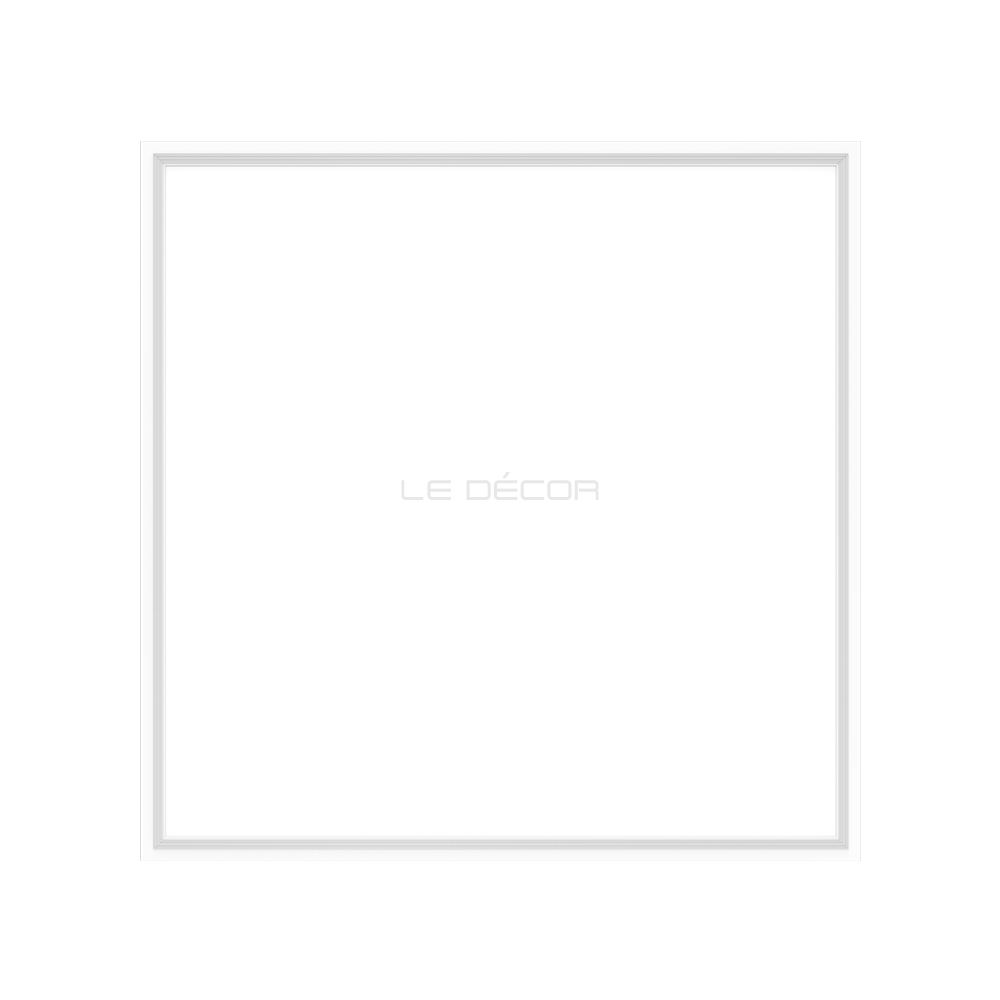

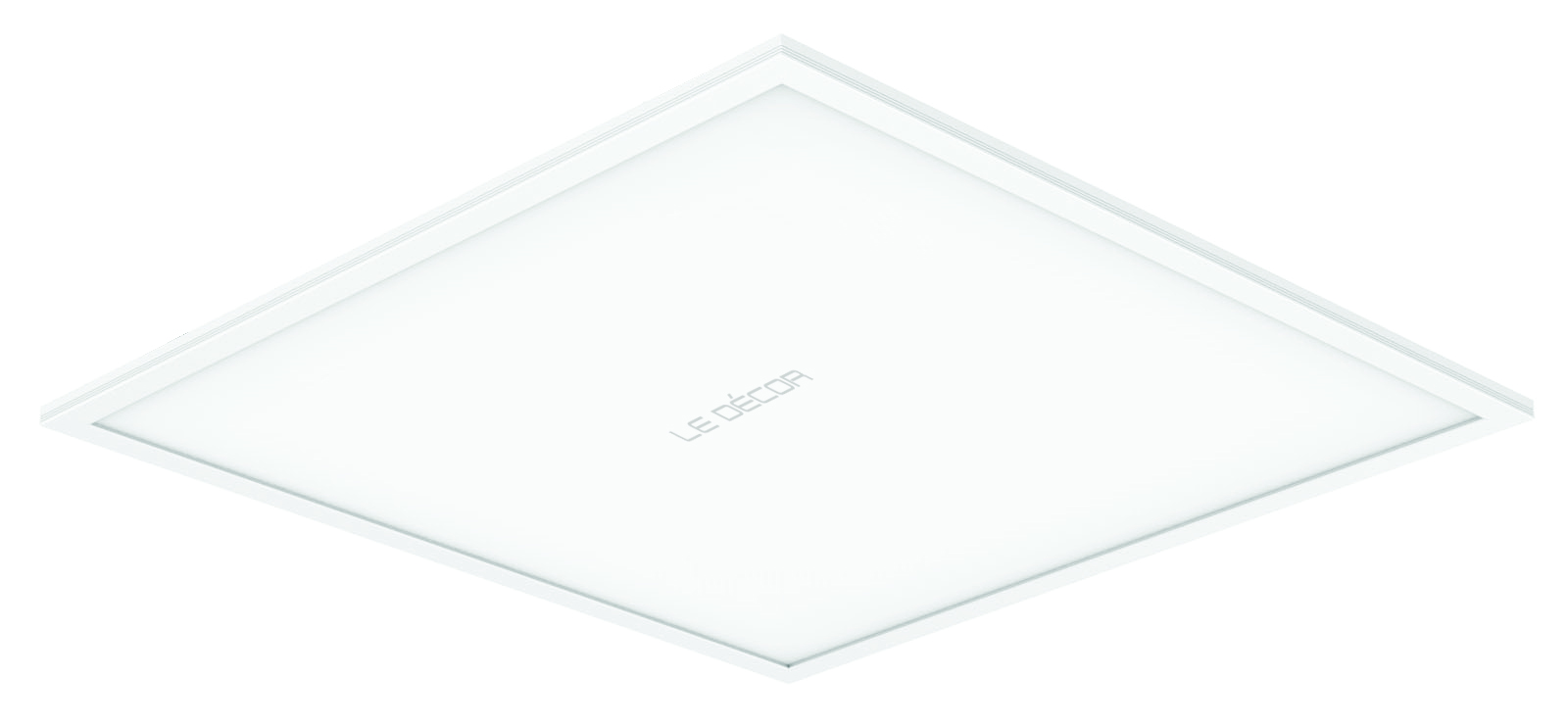

LD-5028-Edge-Lit LED Panel Light
LD-5028-Edge-Lit LED Panel Light
- High quality aluminium housing
- Robust frame
- LED chips on the back for better heat dissipation
- High lumen efficiency LED chip,120-160lm/W
- DALI /0-10V/Triac dimming
- Estimated durability 10+ years
| Light Source: | SMD2835 LED chip |
| Power: | 24W/30W/36W/40W/72W |
| Lumen Efficacy: | 120-160lm/W |
| CCT: | 3000K/4000K/5000K/6000K |
| Input Voltage: | AC200-240V |
| Beam Angle: | 114° |
| Material: | Aluminium |
| Finishing Color: | White |
| Driver: | Boke |
| IP Rating: | IP20/IP40 |
| Mounting: | Recessed, surface, suspended |
| Lifespan: | 50,000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.

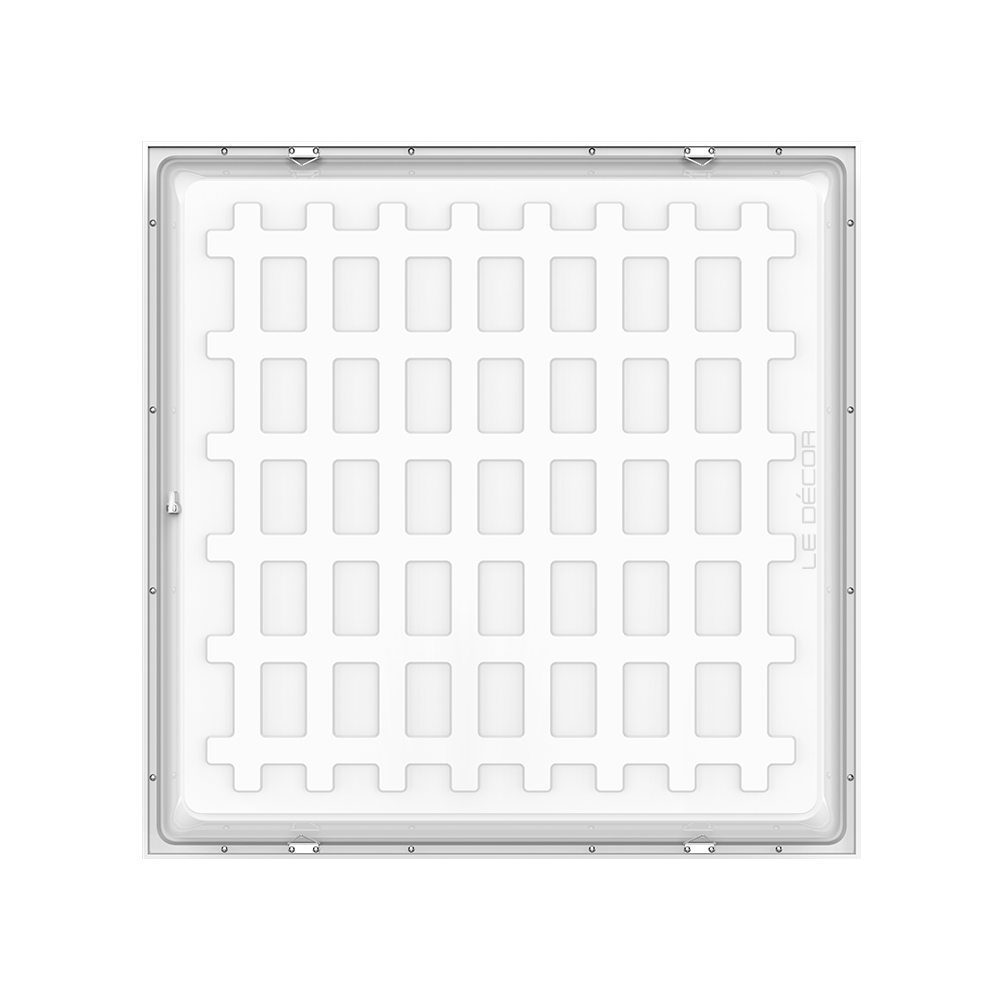

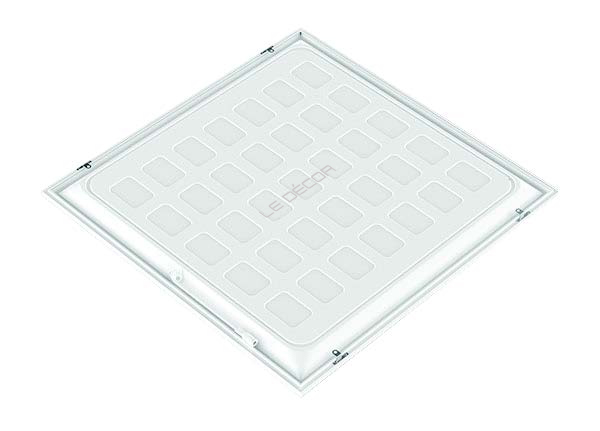

LD-20701-Back-Lit LED Panel Light
LD-20701-Back-Lit LED Panel Light
- High quality aluminium housing
- Robust frame
- LED chips on the back for better heat dissipation
- High lumen efficiency LED chip,100-150lm/W
- DALI/0-10V/Triac dimming
- Estimated durability 10+ years
| Light Source: | SMD2835 LED chip |
| Power: | 36W/60W |
| Lumen Efficacy: | 100-150lm/W |
| CCT: | 3000K/4000K/5000K/6000K |
| Input Voltage: | AC200-240V |
| Beam Angle: | 114° |
| Material: | Aluminium |
| Finishing Color: | White |
| Driver: | Boke, Lifud, Philips |
| IP Rating: | IP20/IP40 |
| Mounting: | Recessed, surface, suspended |
| Lifespan: | 50,000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
